AccuCapper HDEX
Product Variants

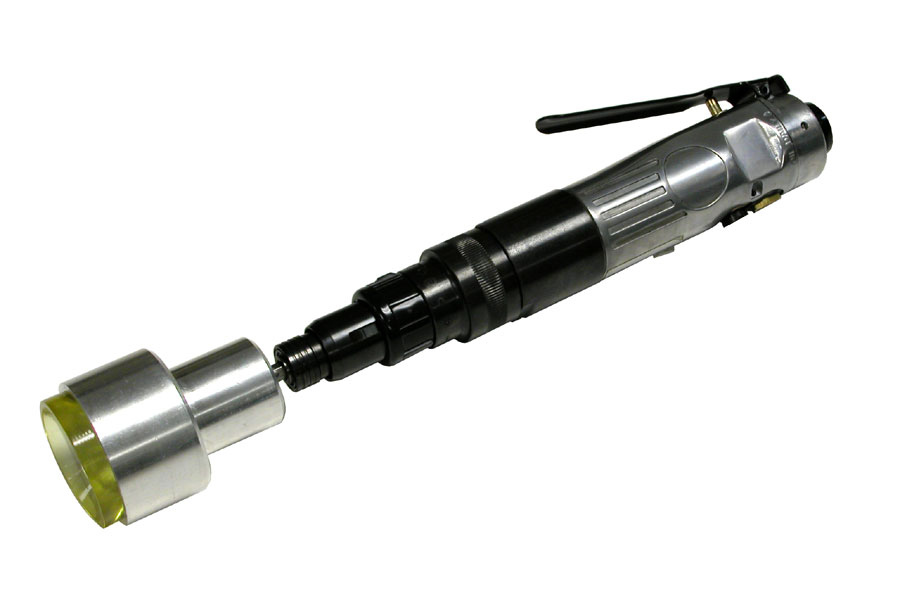

The AccuCapper™ HDEX is a heavy-duty, portable, handheld cap tightener that can tighten or remove screw and lug-type closures. It’s suitable for all production environments and can torque closures with diameters from 3.15” to 4.33” (80 mm to 110 mm).
The HDEX features an adjustable clutch to ensure proper torque and decrease insert wear. Once the closure reaches the set torque value, the chuck will stop rotating, signaling the operator to move on to the next container.
This machine ships standard with a stand and an overhead slide rail. It also has a self-balancer that allows the HDEX to be suspended neatly and weightlessly overhead, out of the way during case changes and reducing operator fatigue. The Accucapper™ HDEX also ships with one chuck and insert (up to a size #50).
Contact Accutek today to find out how the HDEX can work for you.
How do I set up my AccuCapper?
How do I make adjustments to the clutch?
What other sizes of inserts are there?
- Capping Speed: Up to 30 CPM
- Torque Range: 40 – 100 in/lbs (223.99 – 559.97 cm/kg)
- Capping Range: .2” – 4.72” (5 – 120 mm)
- Electrical Requirements: None
- Air Requirements: 90 PSI @ 4 CFM
- Length: 11.75” (29.85 cm)
- Weight: 3.23 lbs (1.47 kg)
- Handheld
- All-pneumatic operation
- Forward and reverse operation
- Variable torque settings
- Deep well chucks for sports caps or pump spray closures
- Additional size chucks and inserts

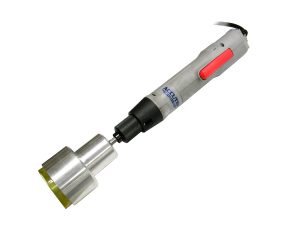

- All-electric model
