Product Specification Sheet

Tabletop Spindle Tightener

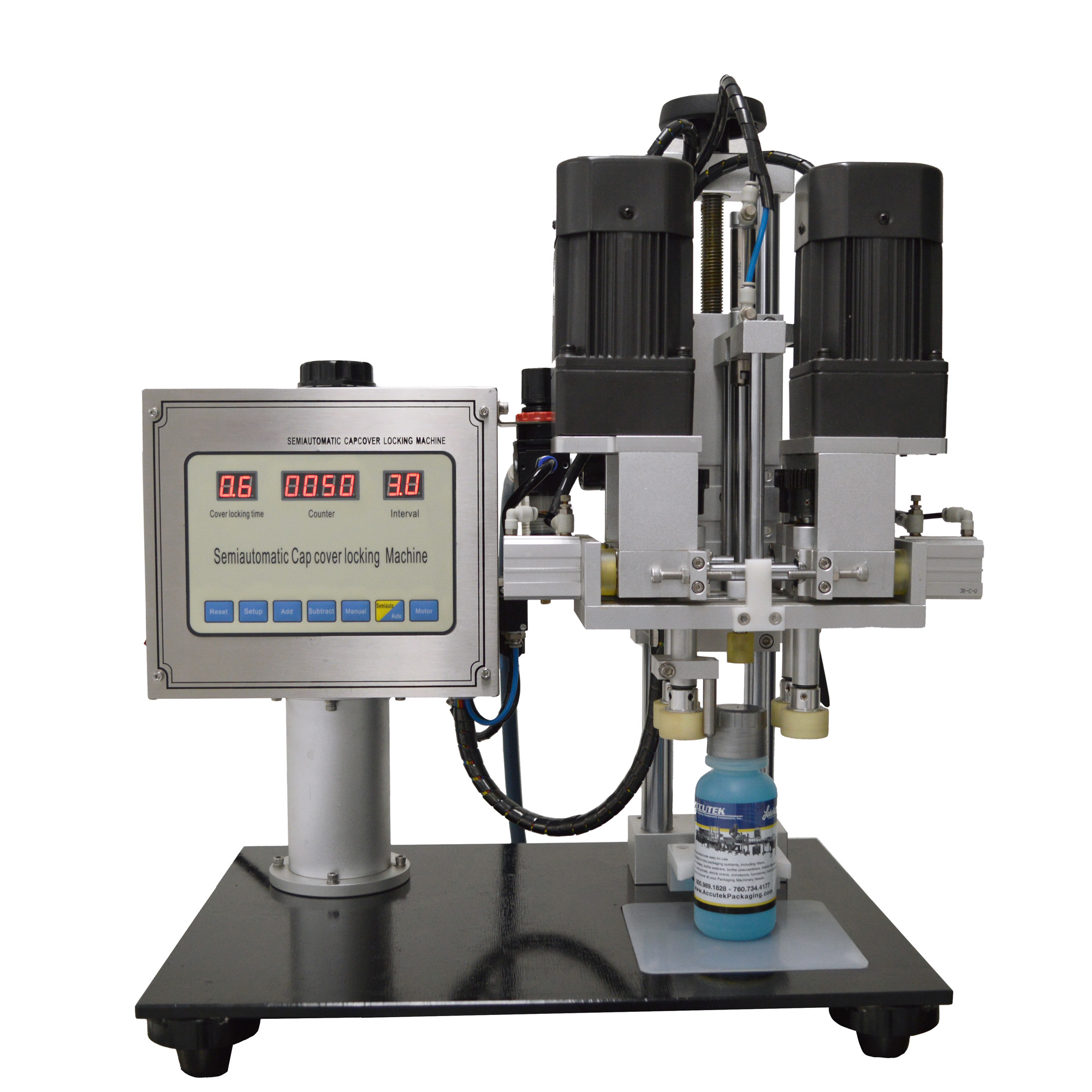

Product Image

Tabletop Spindle Tightener

Product Information
Category:
Semi-automatic, Capping Machines, Screw Spindle Capping Machines
Overview
Accutek's Tabletop Spindle tightener capping machine tightens screw-on caps from 15mm to 70mm in diameter.
Description
About These Machines: Accutek's Tabletop Spindle Tightener tightens screw-on caps from 15mm to 70mm in diameter. This machine provides exact torque control and precise torque consistency. This ensures that the caps applied are tightened correctly, removing the problems from having a leaking bottle. The Tabletop Spindle Tightener is designed to remove the exhaustion and stress that comes with capping by hand. Capping machines are used in different industries like: pharmaceutical, chemical, e-liquid, cosmetic, food and beverage. This machine provides a wide variety of uses, such as capping tamper evident caps, dropper caps, push-pull caps, as well as many others. This product can use plastic bottles, glass bottles and metal containers.
Options
  • Tamper-evident caps
  • Dropper caps
  • Push-pull caps
  • Plastic, glass, and metal containers
Features
  • Adjustable height
  • Adjustable air pressure
  • Compact, easy to operate, low-maintenance

Frequently Asked Questions

  1. What types of containers can the Tabletop Spindle Tightener be used for? The machine is compatible with plastic, glass, and metal containers, and can tighten screw-on caps ranging from 0.58” to 2.76” (15 – 70 mm) in diameter.
  1. How does the Tabletop Spindle Tightener ensure accurate capping? The machine provides precise torque control and consistent torque, ensuring caps are tightened correctly and preventing leaks from bottles.
  1. Which industries can benefit from using the Tabletop Spindle Tightener? This machine is suitable for use in the pharmaceutical, chemical, e-liquid, cosmetic, and food and beverage industries.

Standard Specifications

Standard Specifications

  • Twisting Force: Range (4~88 kg-cm)
  • Compress: Air (5~7 kg/cm2)
  • Bottle height range: 1.97”~11.81” (50~300 mm)
  • Bottle width range: .79”~3.94” (20~100 mm)
  • Cap diameter: .58”—2.76” (15 mm—70 mm)
  • Voltage: AC 110V 50/60 Hz
  • Power: 25W
  • Length: 22.75” (57.79 cm)
  • Width: 15” (38.1 cm)
  • Height: 28” (71.12 cm)
  • Net weight: 32 kg
