AccuVeyor 4

Product Variants

AccuVeyor 6

AccuVeyor 6

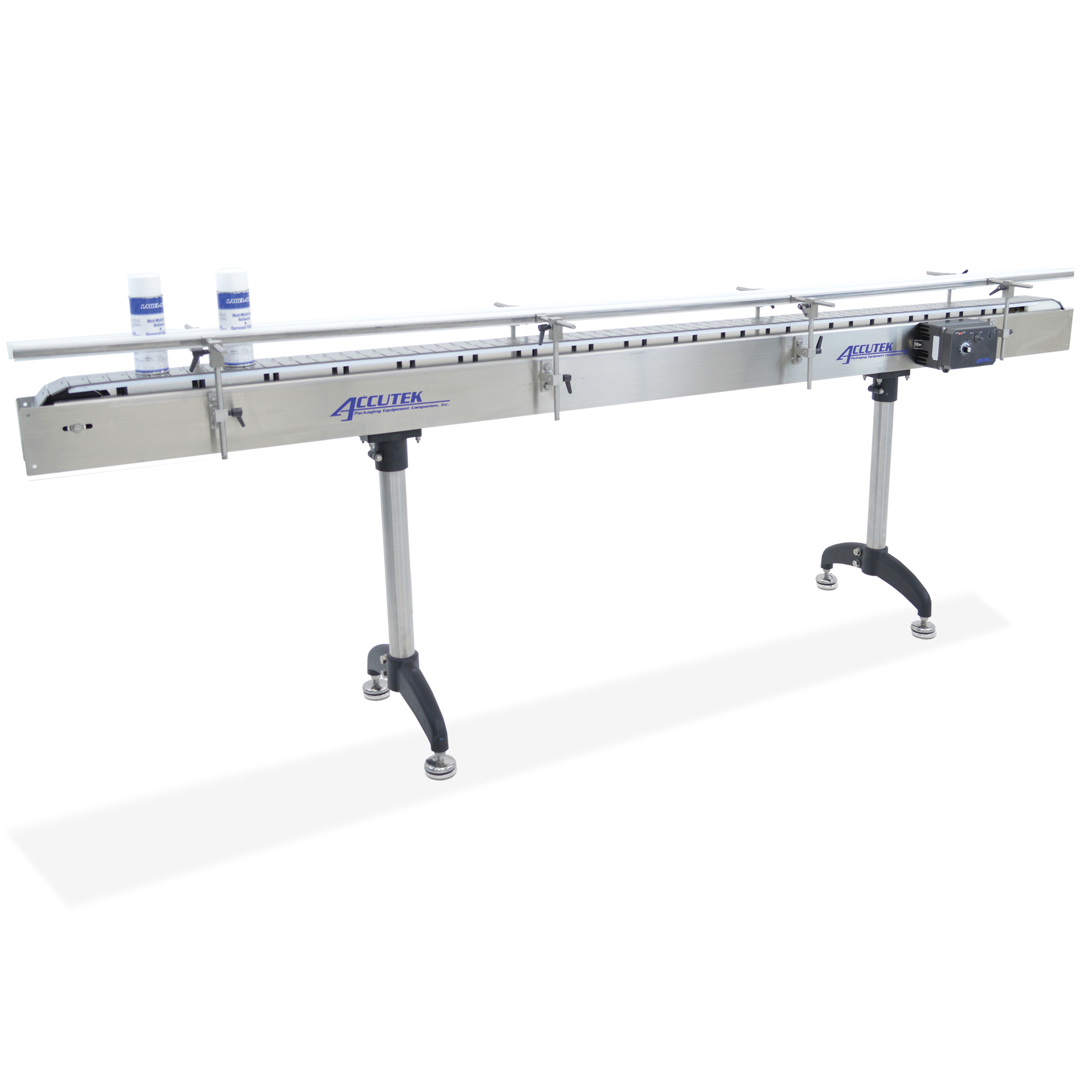

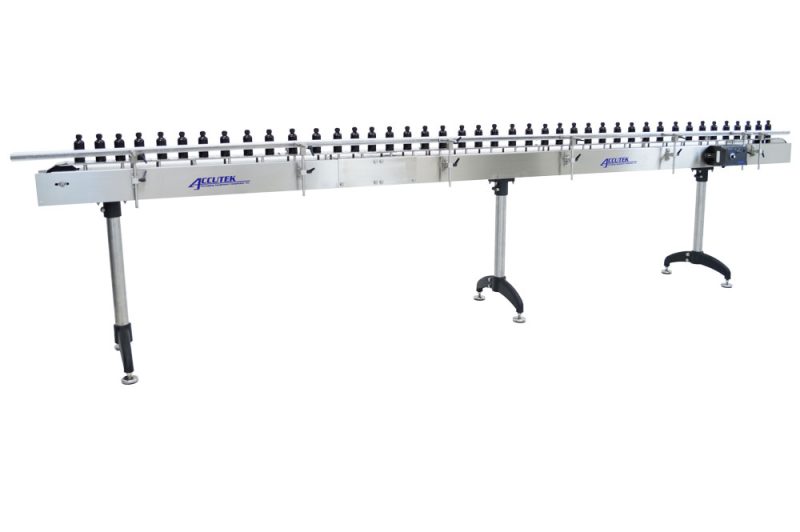

Accutek manufactures the Accuveyor 4 as both open-top and closed-top sanitary conveyors that can be customized to any length or width. Each has heavy-duty stainless steel, height-adjustable stands, and variable speed drives. The belts are made from either polyplastics or stainless steel. Stock conveyor beltways are available in 4.5″ widths.

All lengths and widths are available in open-top and closed-top sanitary designs. The AccuVeyor 4 can be built to any length but is also available in premade sections of 5′, 10′, 15′, and 20′.

Contact Accutek today to learn more about this machine.

Recommended Products

Anything that can fit on the belt

What’s the difference between a closed-top design and an open-top design?

With a closed-top design, the belt is raised over a closed frame. Liquids or contaminants can fall under the belt, but can’t get into the frame. In an open-top design, the belt travels across the top of an open frame. A washdown will usually remove any spilled product from the conveyor line.

How can I adjust my conveyor chain?

Make conveyor chain adjustments at the end opposite the motor. Loosen the axle bolt on both sides. Pull the axle bolts away from the motor end to remove the slack, but don’t pull too hard. Overtightening the chain will cause premature wear to the chain, bearings, and drive sprocket. If the conveyor makes clicking sounds, the belt is too tight or misaligned. We recommend tapping the axle bolt with a wooden block. Then, use it to tighten the chain a little, which should adjust the chain’s path.

What’s the best way to align my conveyor guide rails?

Adjust the rear guide rail to center the container on the conveyor. Be sure this rail is straight. Place an empty container on the conveyor at each guide rail tower. Slide the front guide rail toward the containers until there is approximately 1/16” of space between the containers and the guide rail on each side.

How often should I perform maintenance on my conveyor?

That’s going to depend on how often you use your conveyor and what you use it for. Generally, we recommend a thorough weekly cleaning with a mild detergent. Check that the feet all touch the ground and that the conveyors stay parallel to the machine frame and to each other. Check the belts for damage and keep spares on hand.

What should I do if I have any problems with my machine?

If you experience any problems with your conveyor, contact Accutek’s service department. We’ll be happy to help you troubleshoot any issues you may be experiencing with the Accuveyor.

Speed: 3-130 Liner FPM
Electrical: 110 VAC – 5 AMPS (220 VAC optional)
Height: 36” (91.44 cm)
Length: 60” (152.4 cm)
Width: 8” (20.32 cm)
Weight: Approx. 175 lbs. (79.38 kg)

Stainless steel or poly delrin conveyor chain
Variable speed
¼ or ½ HP drive motor, depending on conveyor material and length
Stainless-steel construction
Easily adjustable height
User-friendly controls
