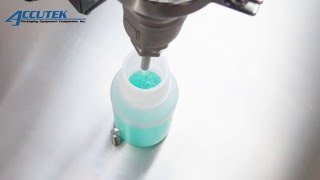

Video thumbnail

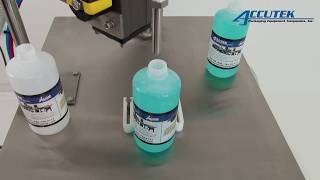

Video thumbnail

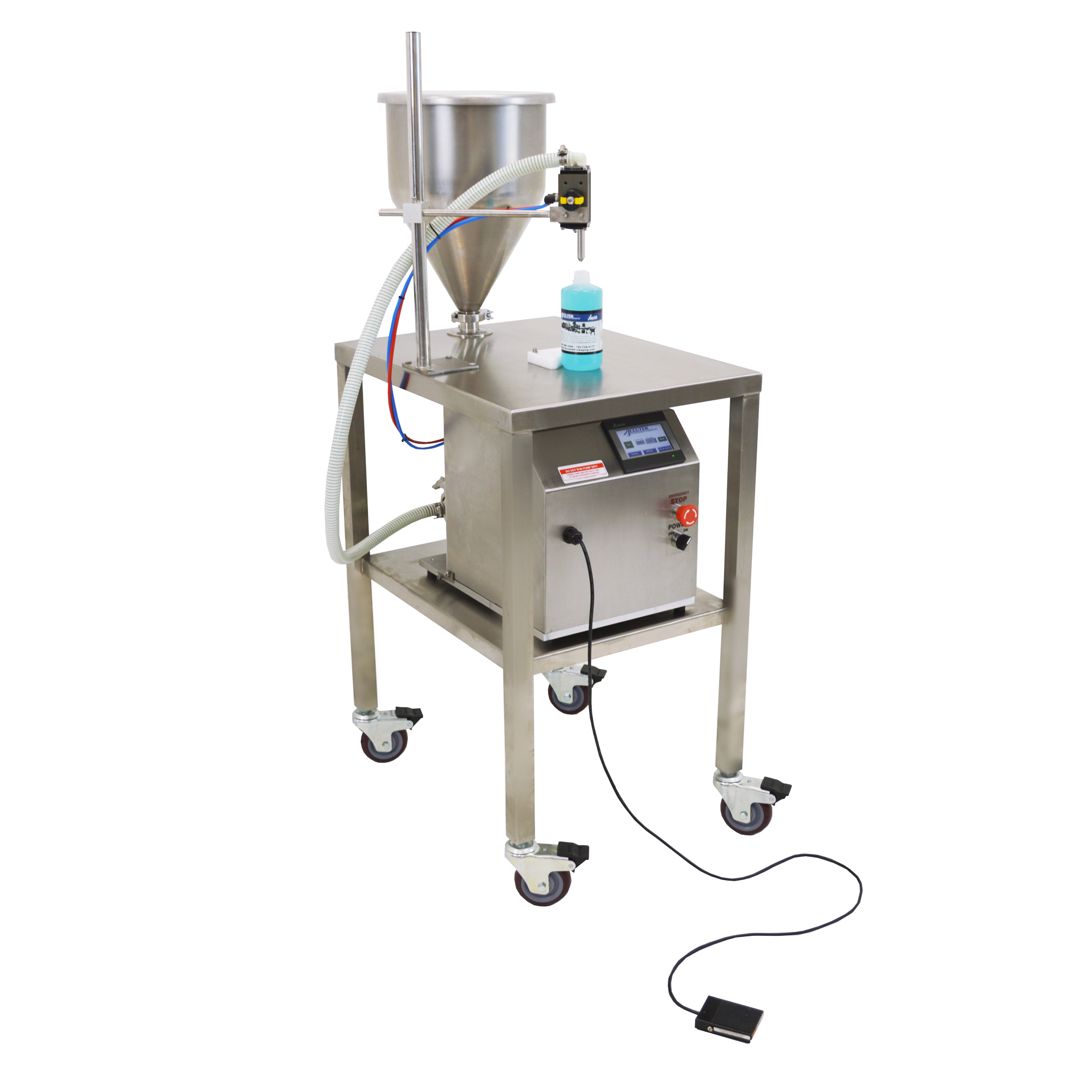

SAPD-1

The SAPD-1 is a single-head Semi-Automatic Positive Displacement Pump filling system designed to handle all types of rigid plastic, metal, and glass containers. It is also designed for higher-viscosity products and precision fills. The system is versatile enough to handle various container sizes, fill volumes, and product types, making it perfect for almost any application.

The programmable logic control (PLC) controls the filling process with fractional rotation pump control. A simple touch screen sets all parameters for fill operations. Stainless steel components and quick disconnect sanitary connections make the SAPD-1 easy to use and maintain.

The SAPD-1 is the perfect filler for small production runs and start-up units. Feel free to contact Accutek today to learn more about this machine.

Recommended Products

How exactly does this machine work?

The SAPD delivers an accurate dose of product into a container. Place a container against the locating hardware in the center of the table. The nozzles should be just above the bottle’s opening. If not, use the horizontal and vertical adjusters to position the nozzle in the container’s opening.

Is the PLC easy to use?

Yes; it’s a simple touchscreen interface that will help you to navigate your machine’s functions. While the function for each button may not appear immediately straightforward, the manual will give you the know-how to navigate it with confidence.

How can I best maintain this machine?

We do not recommend using caustic, bleach, or acid solutions that could potentially erode the machine’s stainless steel and aluminum parts. We also recommend lubricating moving parts after cleaning and at regular intervals, using food-grade lithium grease.

What should I do if I have an issue with the machine?

The manual contains a troubleshooting section to help walk you through solving some basic problems. If for some reason the troubleshooting section doesn’t help or you encounter a problem that it does not cover, please call Accutek’s service department. We’ll do whatever we can to help you through your issue.

Foamy Product: Yes
Corrosive Product: Yes
Heated Product: Yes
Particulates: Yes
Fill Size: 0.5-5+ gallons
Viscosity Range: 1 – 18000 CPS
Speed: Up to 30 CPM
Electrical Requirements: 110/240 VAC/Single-phase/20 AMP
Air Requirements: 120 PSI @ 6 – 12 CFM
Height: 53.25” (135.26 cm)
Length: 26” (66.04 cm)
Width: 20” (50.8 cm)
Weight: ~50 lbs (22.67 kg)

Job/recipe memory
Stainless-steel sanitary gear pumps
Individual volume control for fill head
On-the-fly adjustments
Stainless-steel construction

Positive off nozzles
A 4-GPM or 10-GPM positive displacement pump
