How does the Mini-Pinch work?

You use the Mini-Pinch by placing a row of empty containers beneath the fill nozzles, then you press the Start button on the touchscreen interface. The fill nozzles will dispense however much product you’ve programmed it to into each of your containers. The manual will tell you how to program your filler to dispense however much product you want.

Is the Mini-Pinch easy to set up?

Yes, it is. The Pinch is easily programmable and can be set up on any flat, solid surface. The manual also goes over both preliminary and production setups, so you know exactly what to do to start filling your containers with product.

What do I do if I have any issues with my Mini-Pinch?

If you have any problems with the machine, the first thing to do is to check the troubleshooting section in the manual, which will tell you how to solve some basic problems. For any other issues that the manual doesn’t otherwise cover, contact Accutek’s service department.

How often should I clean and maintain this machine?

That will depend on how often you use it and what you use it for. We do recommend checking for leaks whenever you use the machine. The manual will cover more information regarding cleaning and maintenance.

• Corrosive Product: Yes
• Foamy Product: Yes
• Heated Product: Yes
• Particulates: Yes
• Fill Size: 0.5 – 64 oz. (14.79 mL – 1.89 L)
• Viscosity Range: 1 – 1000 cP
• Speed: Up to 40 CPM
• Air Requirements: 85 PSI 1 CFM
• Electrical Requirements: 110 VAC/10 AMPS (220 VAC optional)
• Height: 32” (81.28 cm)
• Length: 18” (45.72 cm)
• Width: 67” (170.18 cm)
• Weight: ~70 lbs (31.75 kg)

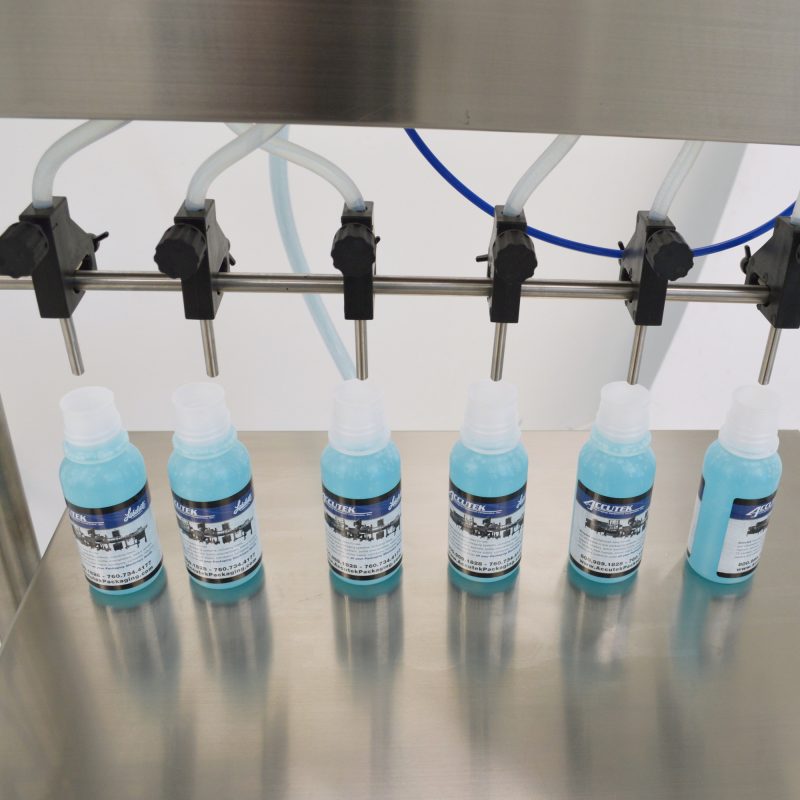

• Six filling nozzles
• Individual flow controls
• Stainless steel stand
• Microprocessor controller
• Centrifugal pump
• Electric operation
• Stainless-steel construction & fill nozzles
• Air regulator

• Sanitary pump upgrade
• All-pneumatic operation
• Custom frames for specialty items
