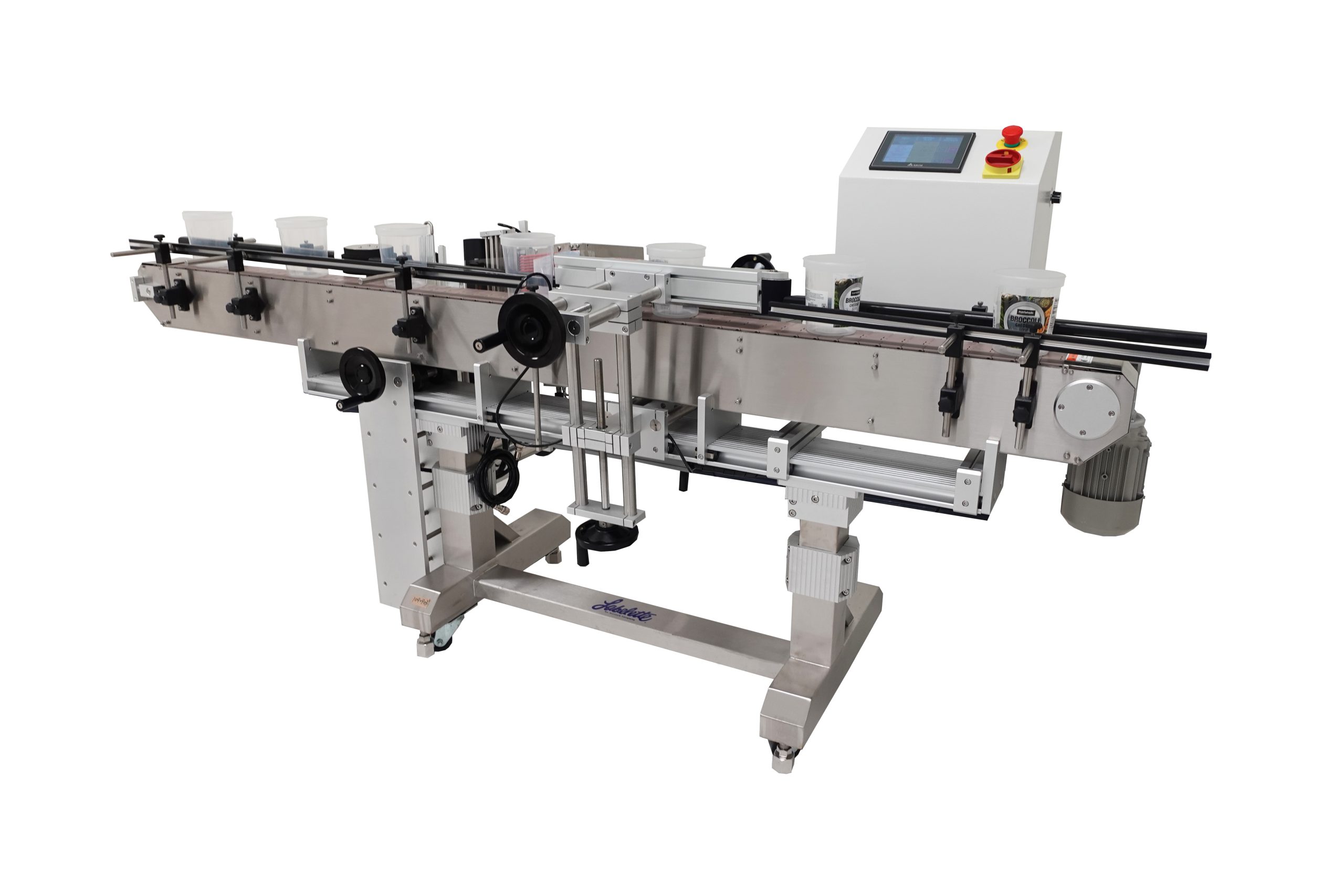

APS 106 TA Labeler - Specification Sheet

Product Description

Accutek’s 106 TA is a pressure-sensitive labeler designed to wrap tapered containers and is ideal for wrapping round containers. Filled and capped bottles enter the labeler on the conveyor belt and slow down when they reach the bottle spacer wheel. The bottle spacer wheel speed sets the space between bottles as they travel toward the peel plate. When the bottle sensor sees a bottle, it signals the drive roller to pull a label across the peel plate. The flagged label’s sticky leading edge attaches to the bottle as it passes the peel plate. The wrap belt rolls the bottle against the pressure plate and presses the label around the bottle. The conveyor then moves the labeled bottle past the label head. The label itself is indexed to a vacuum station that holds the label at the angle that correlates to the angle of the container’s taper. Contact Accutek today to learn more about this machine. Recommended Products

Round containers

Features

Conical wrap addendum
Stainless-steel assembly
In-line automatic applications
Touchscreen control system with job memory
Heavy-duty construction built for three-shift operations
Sanitary stainless-steel thick wall frame
Easy-adjusting hand wheels for quick setup
Synchronized operation
Synchronized powered wrap station
Infeed separator wheel

Standard Specifications

Labeling Speed: Up to 175 CPM
Label Direction: Left Side Off Outside Peel (counterclockwise)
Label Size:
- Length: 0.5” – 17” (1.25 – 43 cm)
- Width: 0.75” – 5.75” (1.9 – 14.6 cm)
Electrical Requirements: 110 VAC – 10 AMPS (220 VAC optional)
Height: 45″ (114.3 cm)
Length: 72″ (182.9 cm)
Width: 41 – 53″ (104.1 – 134.6 cm)
Weight: 527 lbs. (239.04 kg)

Frequently Asked Questions

Is the touchscreen interface easy to use?

Yes, the touchscreen interface is easy to navigate. It may not be immediately obvious which buttons are supposed to do what, but the manual will go over all of this with you. After reading it, you’ll have the know-how and confidence to carry out the labeling of your product(s).

How am I supposed to mount my label reel onto the machine?

You start by setting a roll of labels on the supply reel, then pulling about five feet of labels from the roll to form a leader. Then you peel the labels off the ladder and lace it through the guide rollers, label sensor, and around the peel plate.

The rest of how to mount your label is described in the machine’s manual.

What should I do if I have a problem with the machine?

The machine’s interface contains a built-in section on troubleshooting problems that you may encounter when operating this machine. If the suggested solutions don’t work or the problem is outside its covered scope, then contact Accutek’s service department. We’ll do our best to help you solve your problem.

How often should I clean and maintain my machine?

That will depend on how often you use it. We do recommend cleaning the APS once you receive it, just to make sure any residue from transport is removed.
