APS-134

HomeLabeling MachinesPressure Sensitive Labelers APS-134

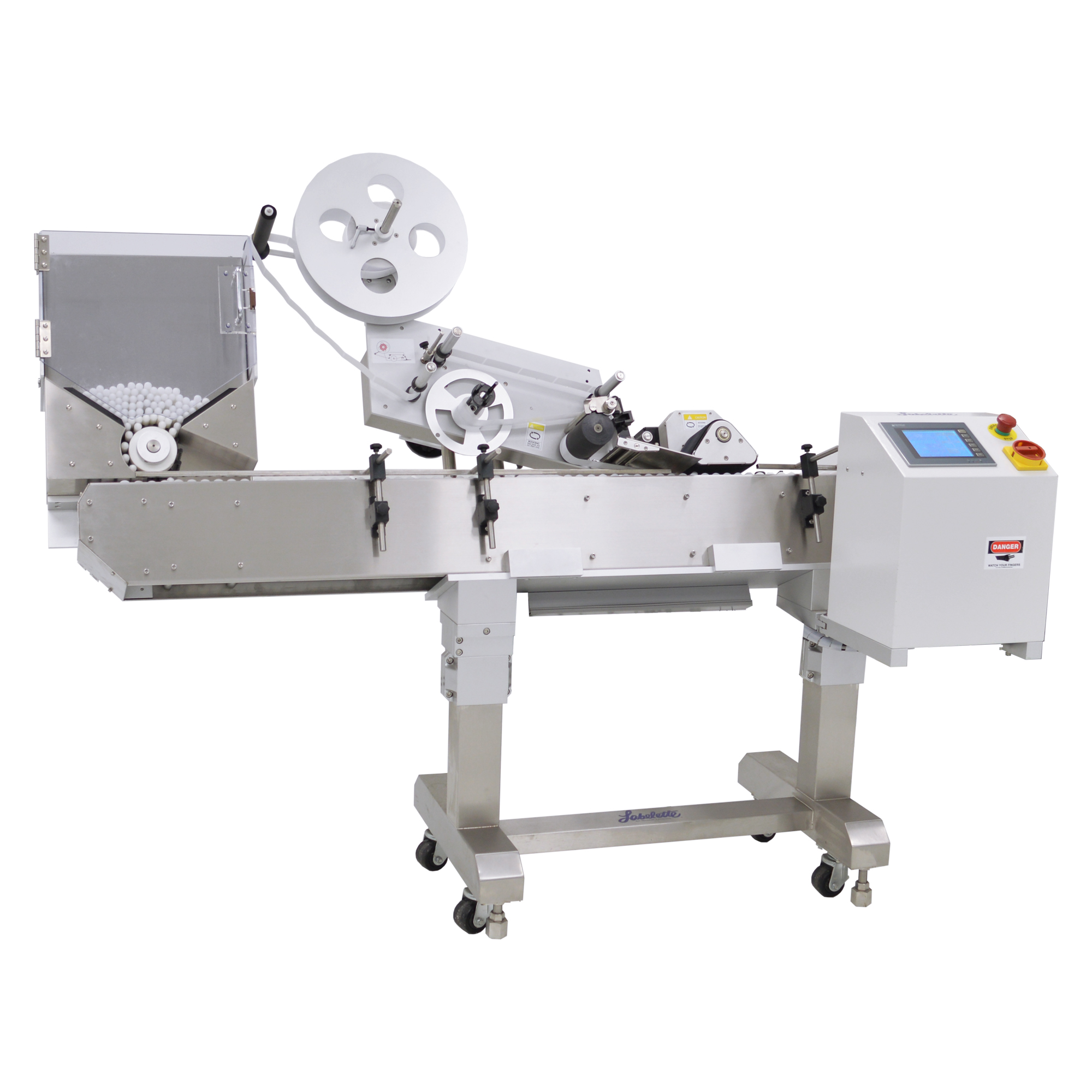

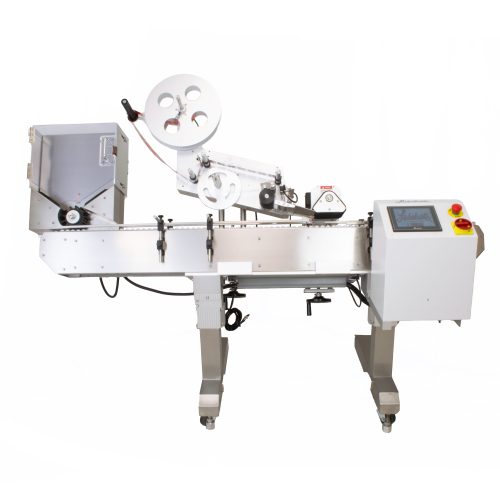

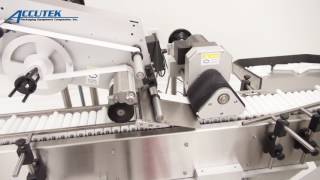

Labelette’s APS-134 is an easy-to-operate automatic horizontal wrap labeler. The APS-134 is designed to label unwieldy round containers horizontally oriented with a full or partial wrap label such as pens, lipsticks, test tubes/ampules, and other cylindrical containers.

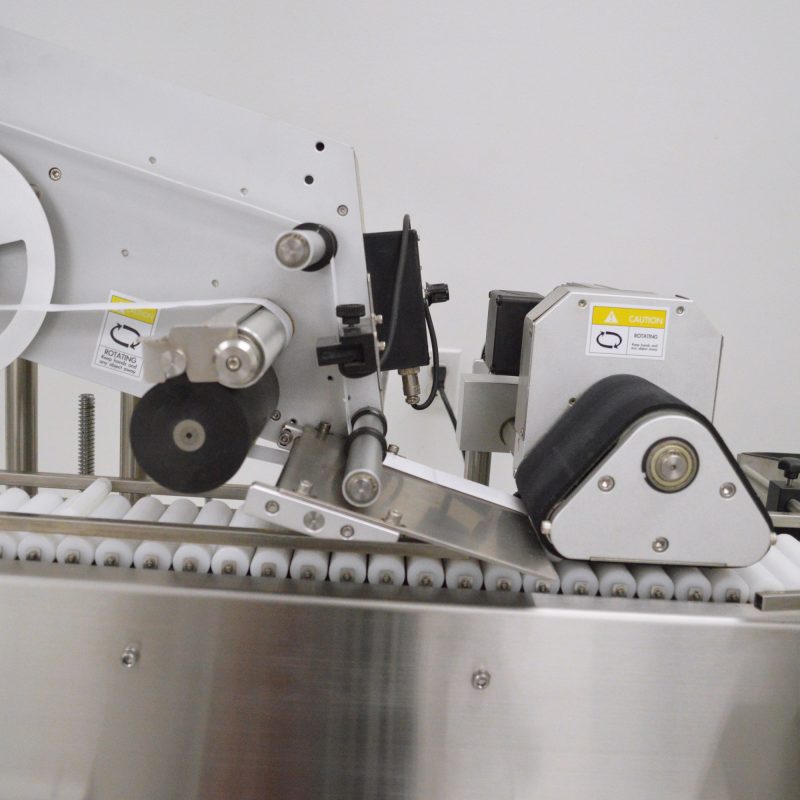

It features a four-foot-long variable speed drive conveyor with an adapted live puck system, perfect for small cylindrical vials or tube containers. The label head is fully synchronized with the conveyor and can dispense labels up to 3″ (7.62 cm) tall.

The APS-134’s speed, versatility, and reliability exceed industry leaders in labeling equipment technology at a fraction of the price.

Contact Accutek today to learn more about this machine.

Recommended Products

  • Round containers

Is the touchscreen interface easy to use?

Yes, the touchscreen interface is easy to navigate. It may not be immediately obvious which buttons are supposed to do what, but the manual will go over all of this with you. After reading it, you’ll have the know-how and confidence to carry out the labeling of your product(s).

How am I supposed to mount my label reel onto the machine?

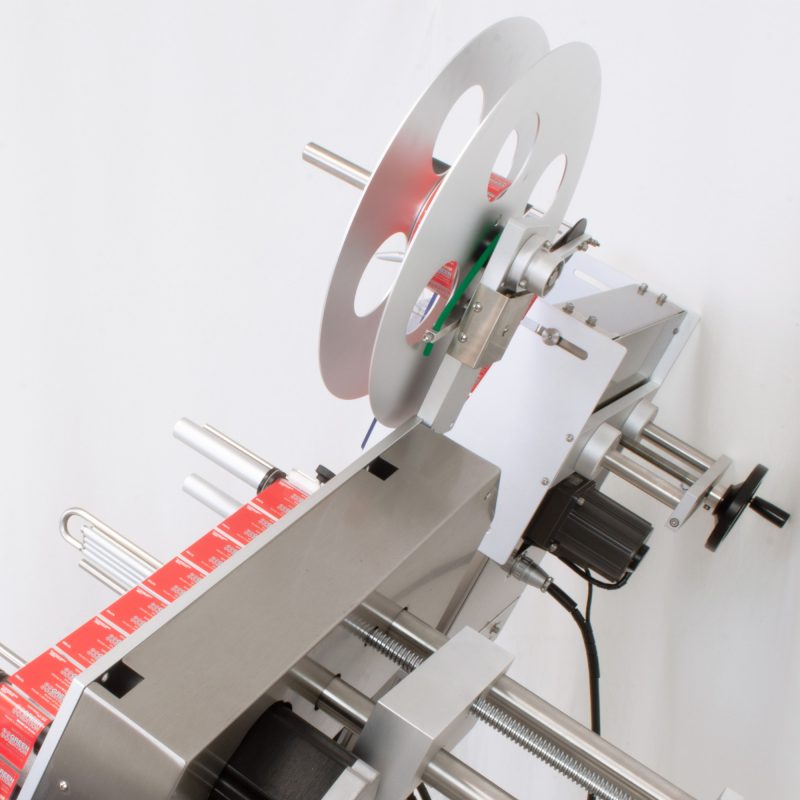

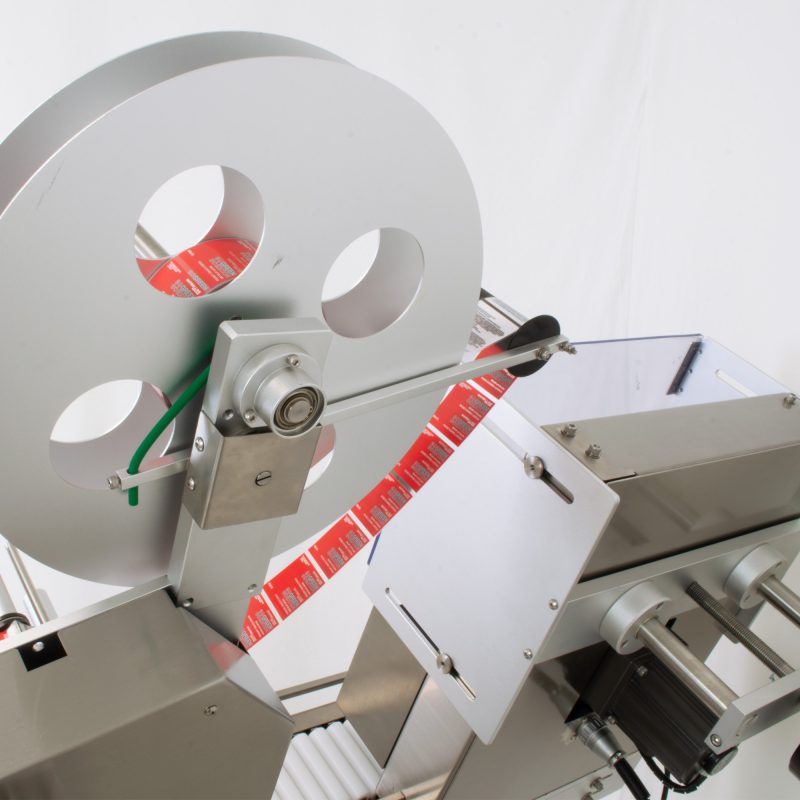

You start by setting a roll of labels on the supply reel, then pulling about five feet of labels from the roll to form a leader. Then you peel the labels off the ladder and lace it through the guide rollers, label sensor, and around the peel plate. The rest of how to mount your label is described in the machine’s manual.

What should I do if I have a problem with the machine?

The machine’s interface contains a built-in section on troubleshooting problems that you may encounter when operating this machine. If the suggested solutions don’t work or the problem is outside its covered scope, then contact Accutek’s service department. We’ll do our best to help you solve your problem.

How often should I clean and maintain my machine?

That will depend on how often you use it. We do recommend cleaning the APS once you receive it, just to make sure any residue from transport is removed.
  • Labeling Speed: Up to 125 CPM
  • Label Length: 0.5” – 11” (1.27 – 27.94 cm)
  • Label Height: 0.5” – 3” (1.27 – 7.62 cm)
  • Electrical: 110 VAC – 10 APMS, 56/60 Hz (220 VAC optional)
  • Height: 48” – 60” (121.92 – 152.4 cm)
  • Length: 48” (121.92 cm)
  • Width: 40” (101.6 cm)
  • Weight: Approx. ~350 lbs. (158 kg)
  • Auto Label Learn™
  • Label head dispenses up to 3” (7.62 cm) tall labels
  • In-line automatic applications or semi-automatic use
  • Angle-roller conveyor
  • Touchscreen control system with job memory
  • Heavy-duty construction for three-shift operations
  • Sanitary stainless-steel frame
  • Easy-adjusting hand wheels for quick setup
  • Fully synchronized conveyor and label head
  • Maximum roll diameter of 13.5″ (34.29 cm)

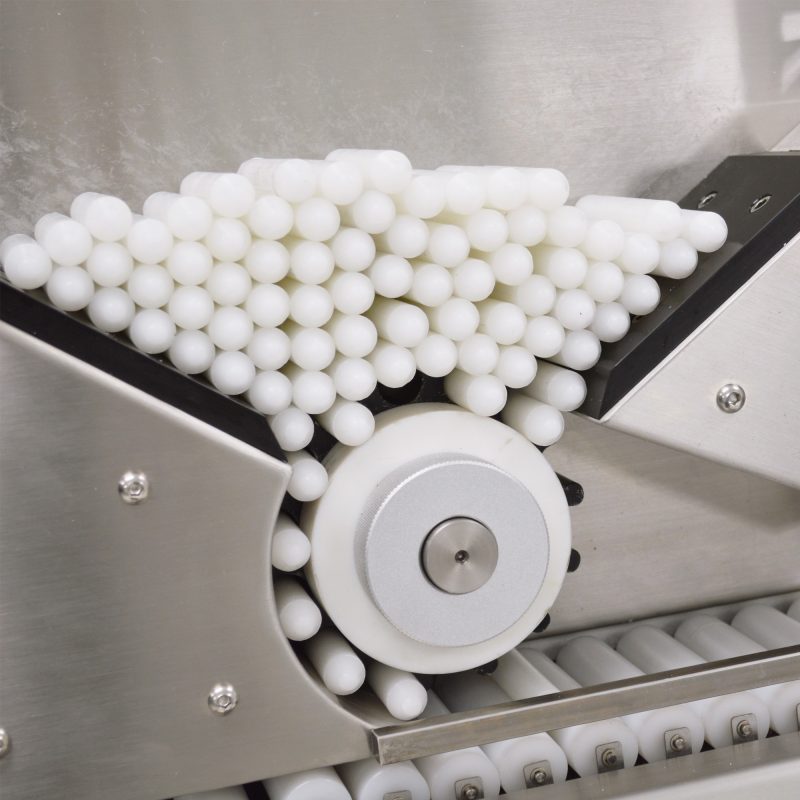

  • Bulk-loading magazine (custom to container)
  • Hot-stamp date/lot coder
  • Alpha-numeric starter kit
  • Clear label sensor
  • Bulk loader
  • Casters
