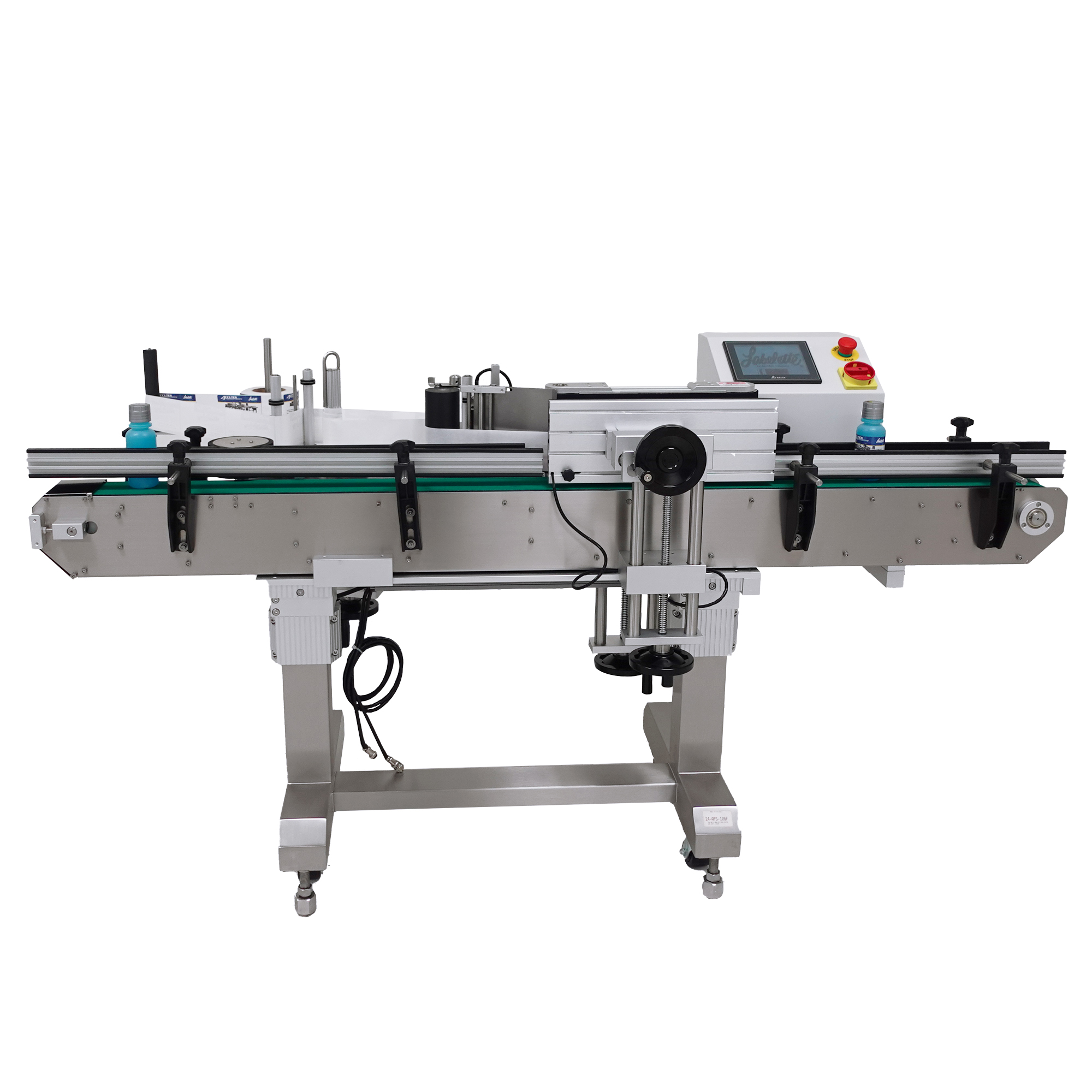

106 Fabric Belt Labeler
Product Variants

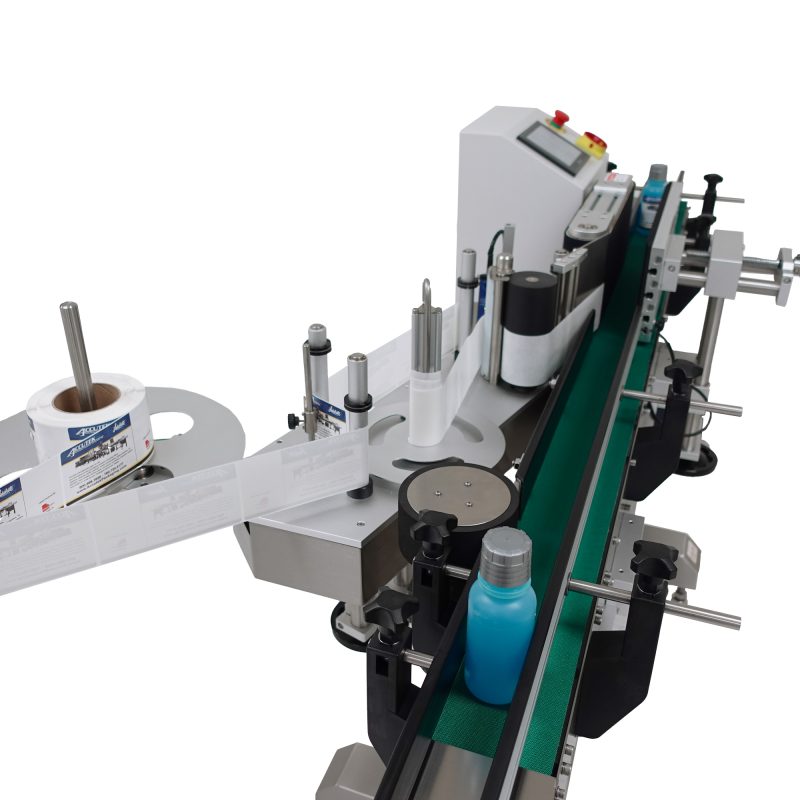

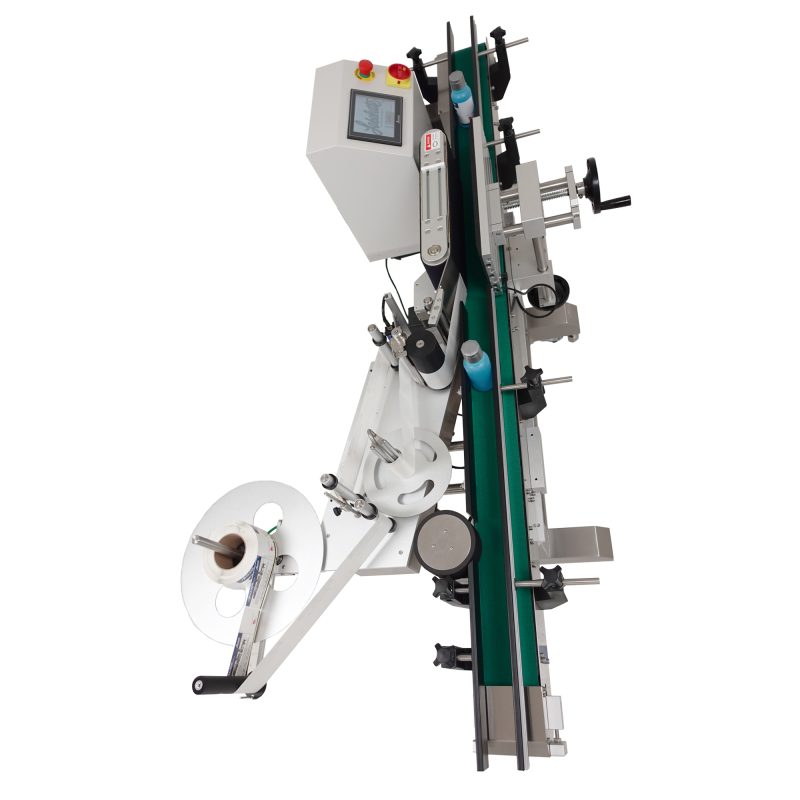

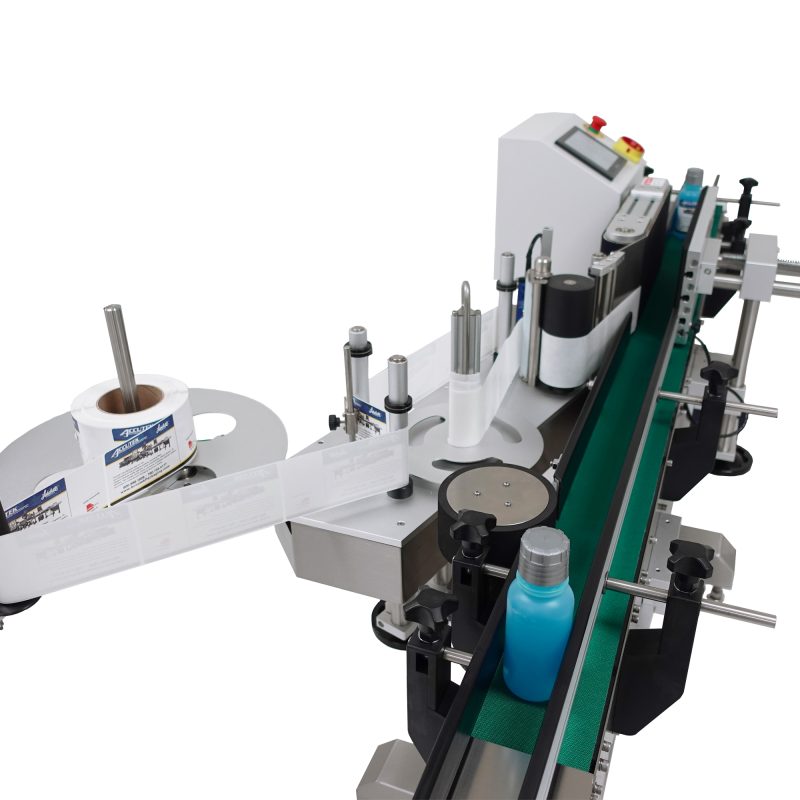

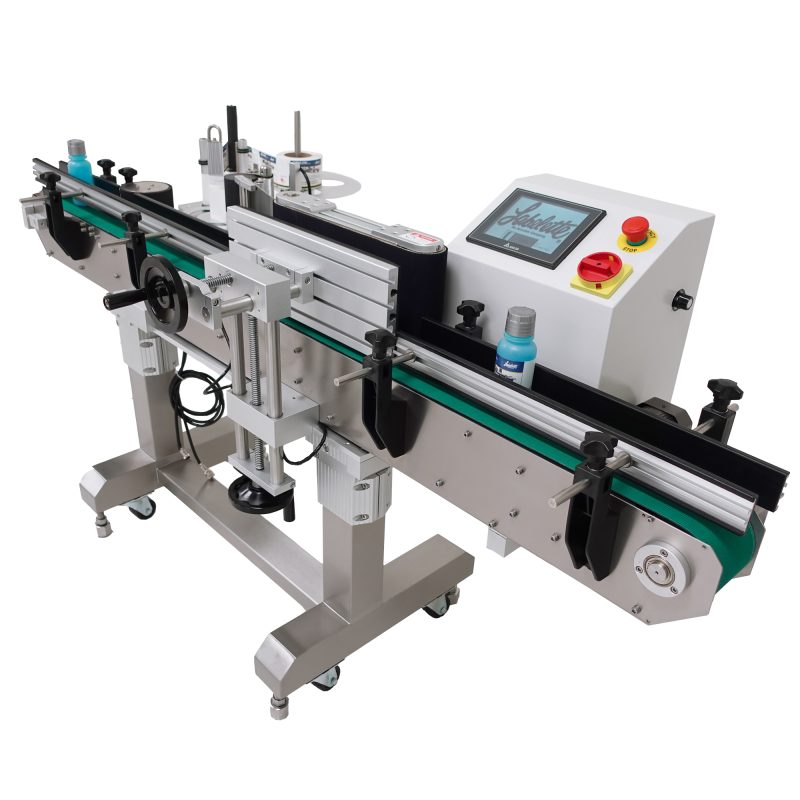

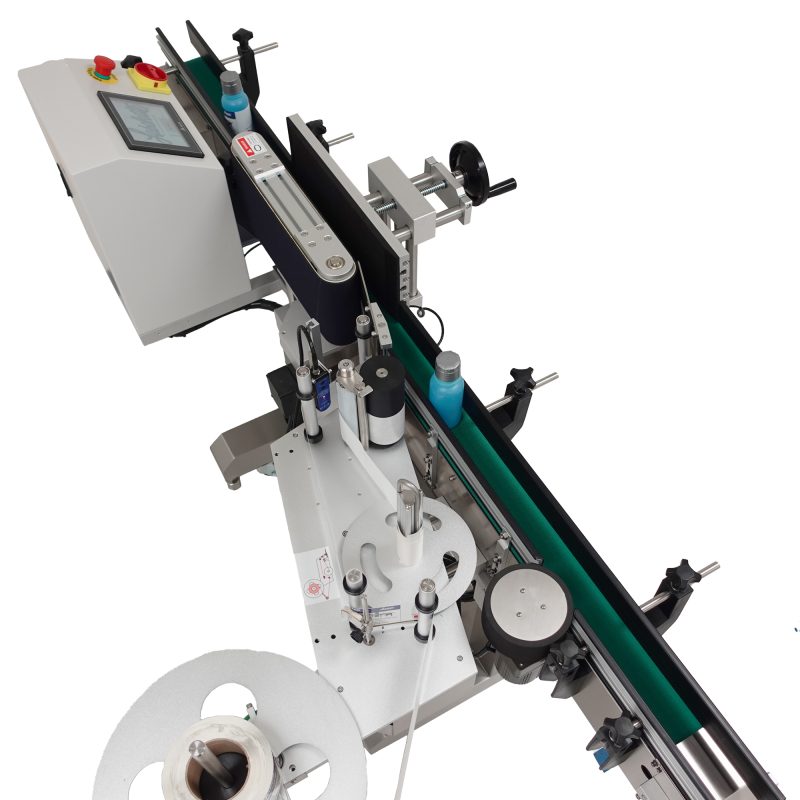

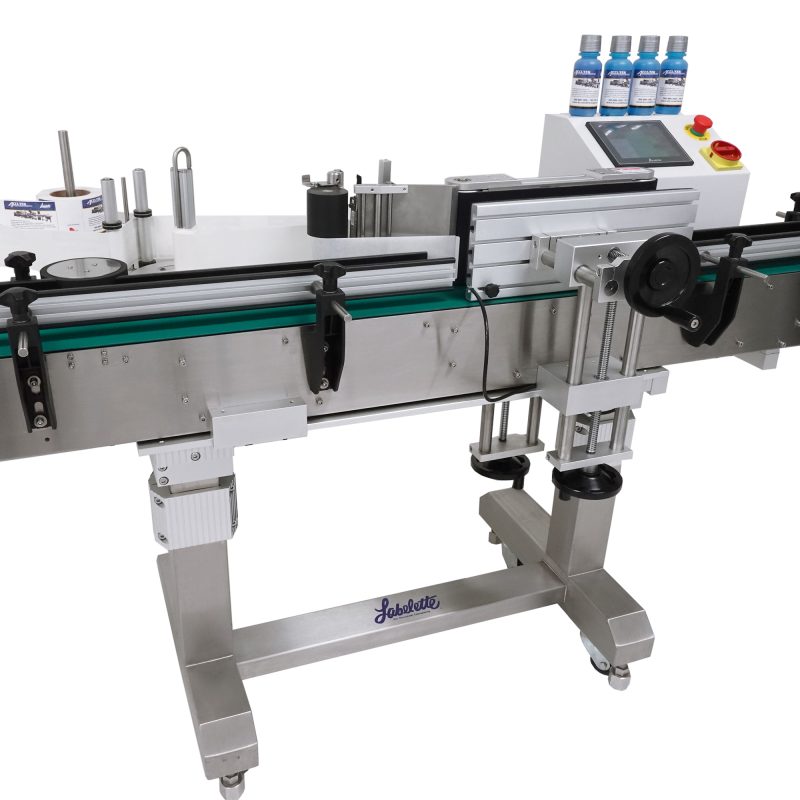

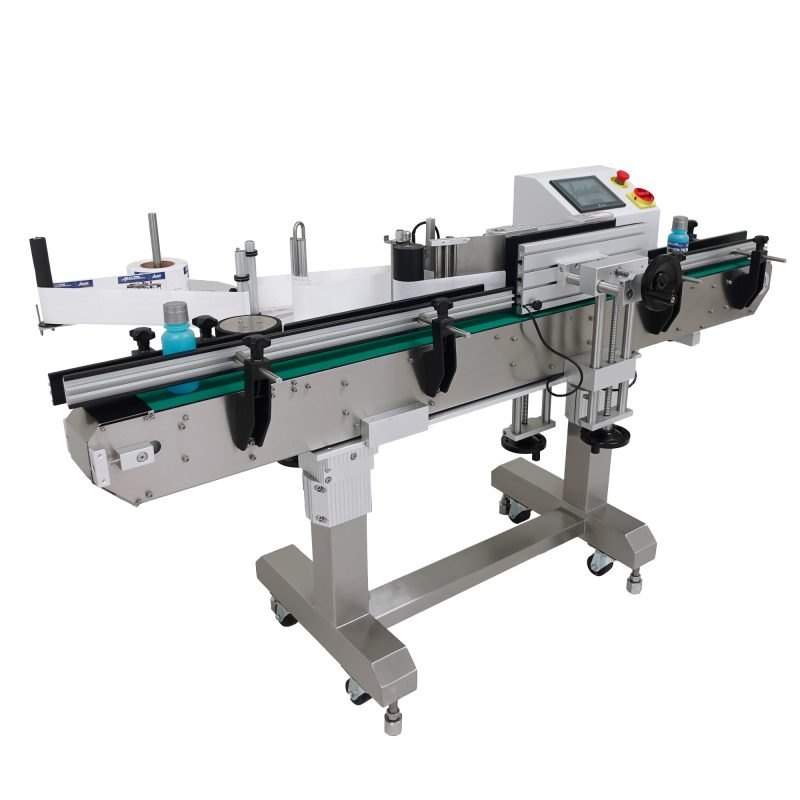

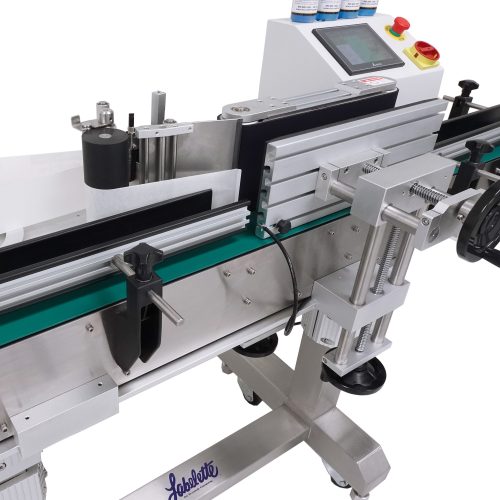

The APS-106 fabric belt labeler is an automatic pressure-sensitive labeler designed for efficiently labeling containers.

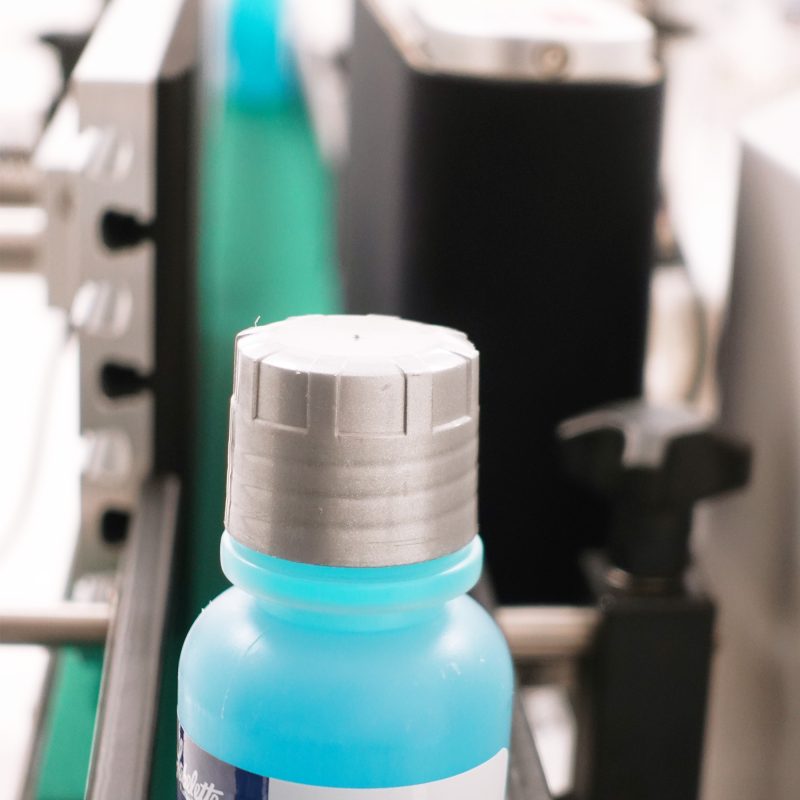

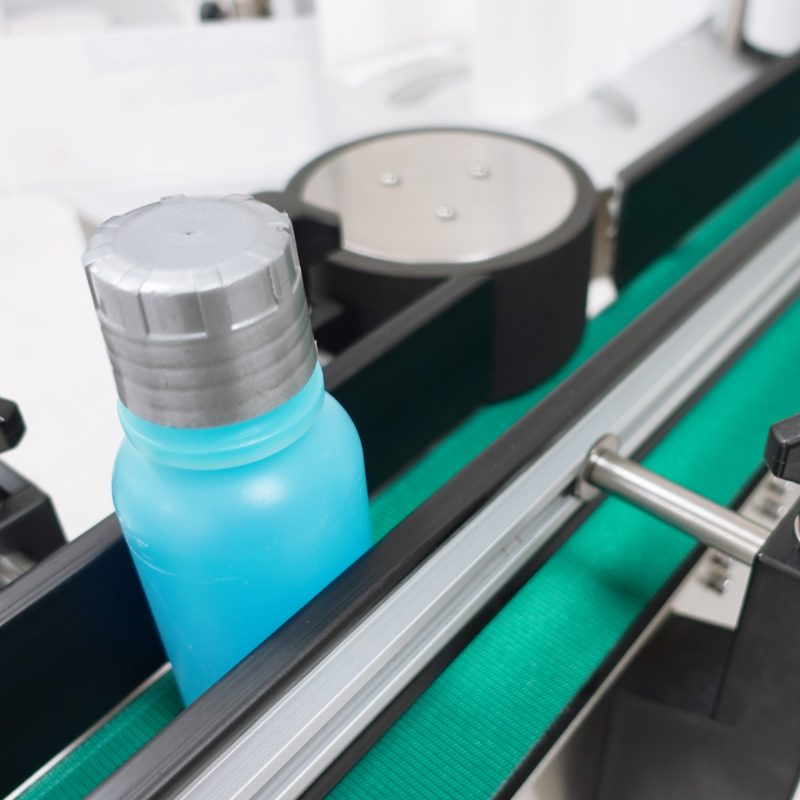

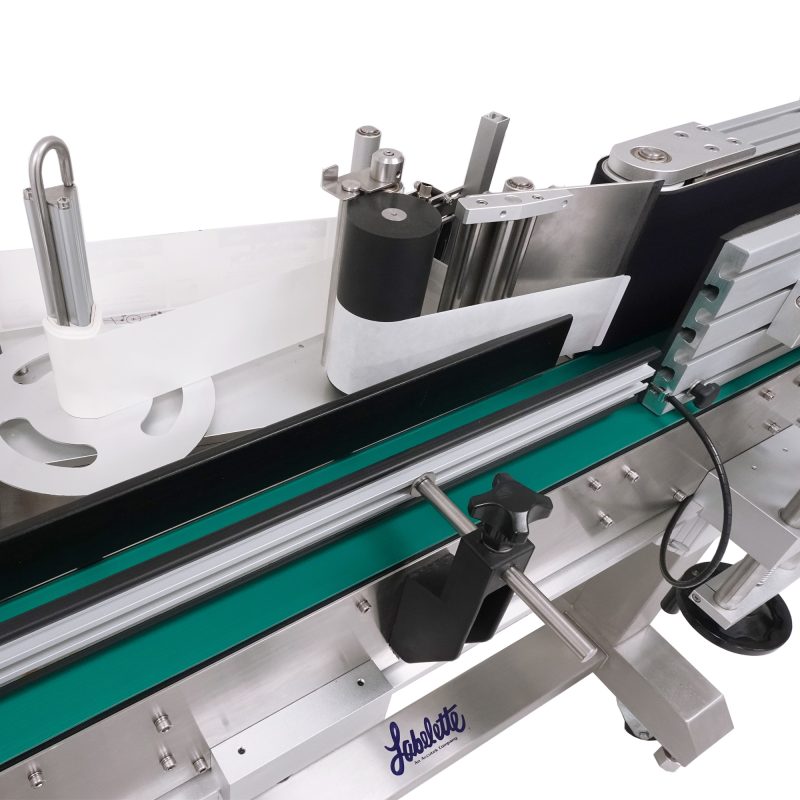

The labeler is designed with a fabric belt to assist in labeling containers incompatible with the flexible chain link on the standard APS or PSA series labelers. The fabric belt will not mar or scratch high-gloss cosmetic bottles during labeling.
This APS features a high-torque digital drive system for precise label application, ensuring reliability with low maintenance. A variable-speed conveyor handles speeds up to 175 containers per minute, perfect for high-volume production.

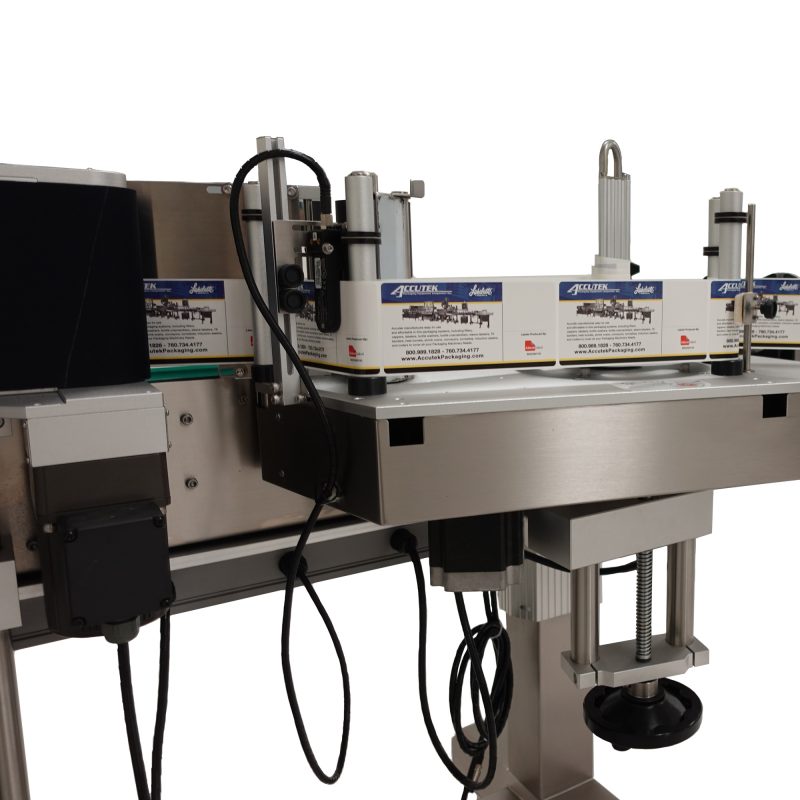

The APS-106 also has a full wrap station, maintaining smooth label application without wrinkles or creases; it also has an accurate non-contact photo-eye detection system.

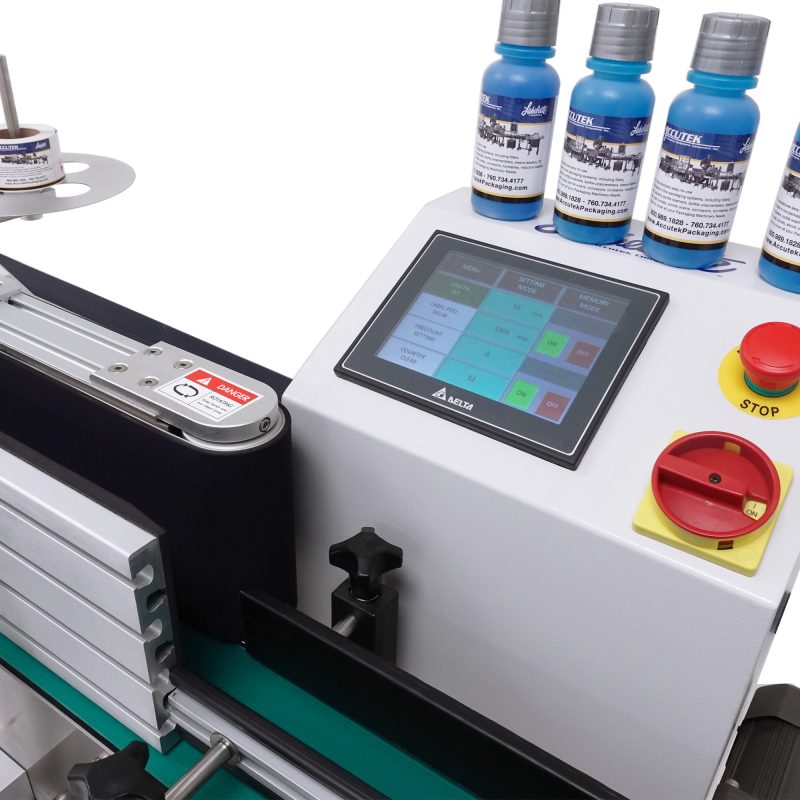

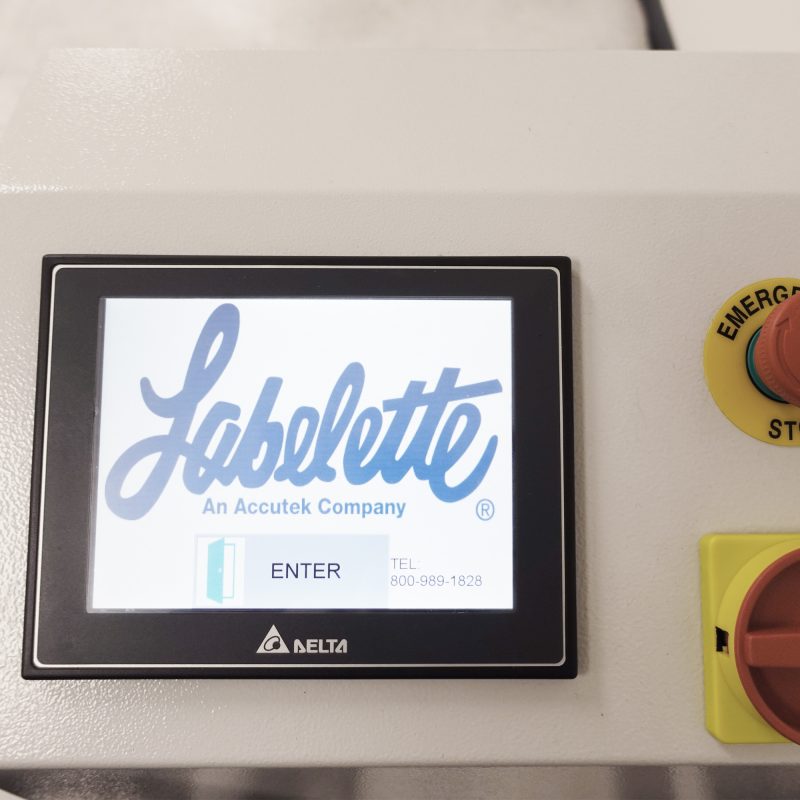

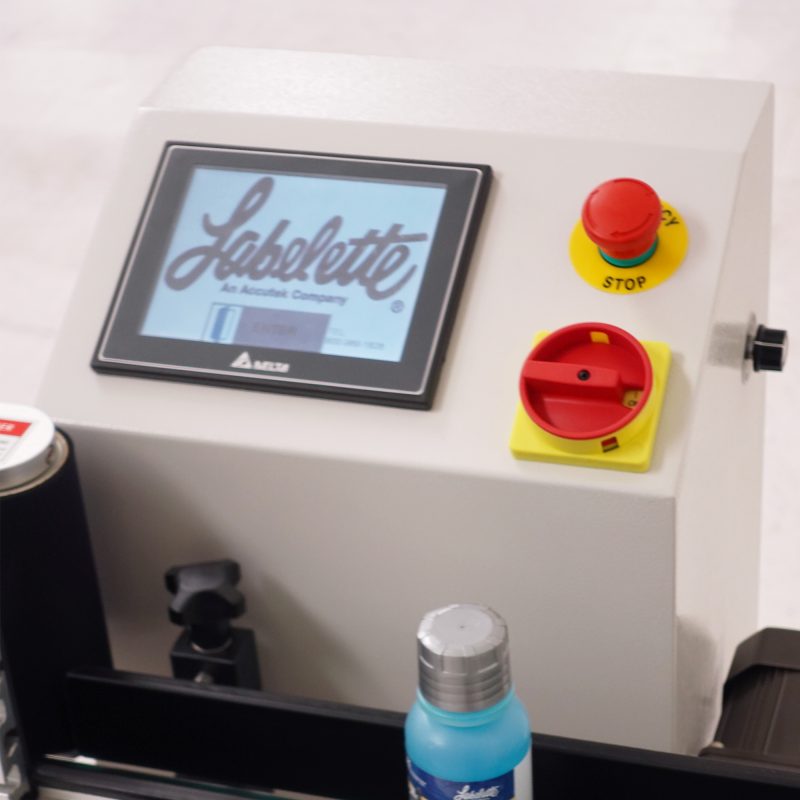

One of the standout features included here is Labelettes’s Auto Label Learn software. This allows operators to make real-time adjustments to bottle and label settings using touchscreen controls, streamlining changeovers and reducing production downtime.
The labelers accommodate plastic, metal, fiber, and glass containers, offering versatility for diverse packaging needs.
Contact Accutek today to learn more about this machine.
Recommended Products
- Beverages
- Pharmaceuticals
- Cosmetics
- Personal care products
- Cleaning products
- Cooking oils
- Sauces
- Health and beauty products
- Liquid medicines
- Chemicals
- Solvents
- Ink
- Pigments
- Food products
- Adhesives
- Glues
- Pet care products
- Industrial
- Automotive fluids
- Liquid fertilizers
- Art and craft supplies
Is the touchscreen interface easy to use?

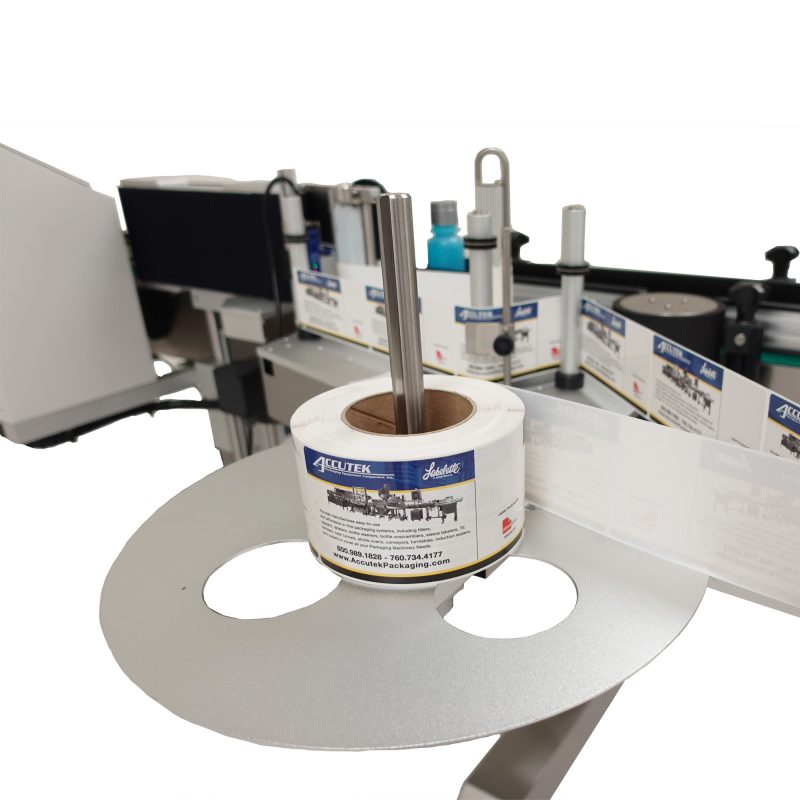

How am I supposed to mount my label reel onto the machine?
What should I do if I have a problem with the machine?
How often should I clean and maintain my machine?
- Labeling Speed: Up to 175 CPM
- Label Direction: Left side off outside peel (counterclockwise)
- Base Paper: Opaque or translucent
- Reel Inner Diameter: 76 mm (3”)
- Reel Outer Diameter: 375 mm (14.76”)
- Interval of Label (between label): Min: 3 mm (1/10” ) or more
- Width of Base Paper: Label Width + 4 mm
- Width of Label: 70H Label Head – 10~70 mm
- Length of Label: 1.5 ~ 30 cm (standard)
- Electrical Requirements: 110VAC – 10 AMPS (220 VAC optional)
- Height: 45″ (114.3 cm)
- Length: 72″ (182.88 cm)
- Depth: 41-53″ (104.14-134.62 cm)
- Weight: 527 lbs. (239.04 kg)
- Auto Label Learn™ (Automatic label setup)
- Label head dispenses up to 5.75″ (14.61 cm) tall labels
- Touchscreen control system with job memory
- Heavy-duty construction for three-shift operations
- Sanitary stainless-steel frame
- Easy adjusting hand wheels for quick setup
- Fully synchronized conveyor/label head, with eight different speed selections
- Height-adjustable conveyor
- Maximum roll diameter of 13.5″ (34.29 cm)
- Hot-stamp coder
- Pneumatic separator
- Three-roller system (registration and long labels)
- Clear label sensor
- Anti-static device
