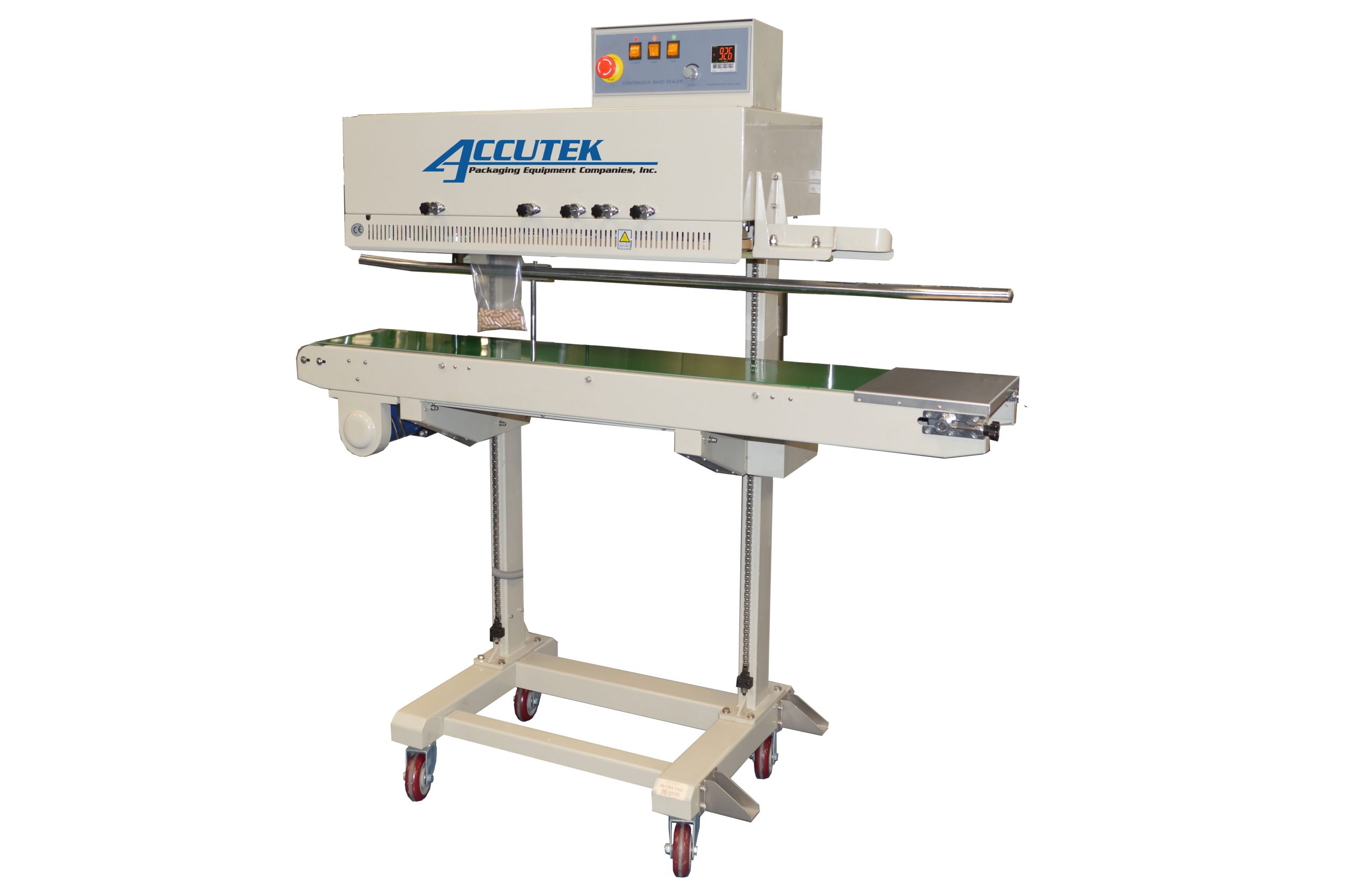

Accutek Band Sealer - Specification Sheet

Product Description

Accutek band sealers are equipped with electronic temperature controllers and variable-speed conveyors to seal all thermoplastic materials (PP, PE, stand-up pouches, gusseted bags, moisture barrier bags, etc.). Seals are created using PTFE bands, maintaining high seal quality and producing consistently reliable, clean seals on all heat-sealable bags. Because bags are placed on a conveyor system, the bag width does not matter. These versatile machines offer several adjustments, allowing them to be used for a wide range of applications. These machines are used extensively in the food, medical, chemical, cosmetic, and electronics industries. The Accutek band sealer is a standalone unit with locking casters, providing easy mobility. The sealer’s vertical configuration makes the sealer ideal for packaging granular, powder, and liquid products. Stand-up pouches work well with this machine. Contact Accutek today to learn more about this machine. Recommended Products

PP
PE
Stand-up pouches
Gusseted bags
Moisture barrier bags

Features

Simple to use with minimal operator training
Fast warm-up time
Unit feeds right to left
Stainless-steel construction
Equipped with a bag entry guide for easy bag feeding and straight seals
Wide seal (8 mm) to assure an airtight seal
PTFE sealing belts
PID digital temperature controller, 0 – 300 degrees Celsius

Options

Printer
Gas flush to minimize/remove oxygen in pouch

Standard Specifications

Voltage: 110 V 60Hz
Motor power: 245 W
Sealing power: 300x2W
Sealing speed: 0 – 32.81 ft/min [0 – 10 m/min]
Sealing width: .39 in [10 mm]
Temperature control range: 0 – 572º F [0 – 300º C]
Distance from sealing center to conveyor table: 3.94 – 27.6 in [100-700 mm]
Size of conveyor table: 55.12” x 9.8” [1400 x 250 mm]
Thickness of film (monolayer): ≤ .005” [0.12 mm]
Conveyor loading for single package: ≤ 11lbs [5 kg]
Overall loading of conveyor: ≤ 33 lbs [15 kg]
External dimensions:
- Length: 57.1” (145.03 cm)
- Width: 26.8” (68.07 cm)
- Height: 58.3” (148.08 cm)
Net weight: 300 lbs [136.08 kg]

Frequently Asked Questions

How often should I clean and maintain the band sealer?

We recommend dusting and cleaning the motor at regular intervals. Do not use alcohol, gasoline, or liquids with Benzene chemicals; they could damage the motor cover’s paint.

Make sure to clean the internal motor and external communicator 120 hours after use. You can use alcohol to clean the communicator.

The manual will discuss cleaning and maintenance in further detail.

What should I do if I have any problems with the machine?

If you experience any problems with your horizontal band sealer, then consult your user manual. It contains a troubleshooting section that details various issues you may encounter while operating your sealer, as well as the corresponding solutions for them.

If the problem is outside the scope of what the manual describes, or the suggested solutions aren’t fixing the issue, then consult Accutek’s service department. We’ll be happy to help walk you through troubleshooting the problem.
