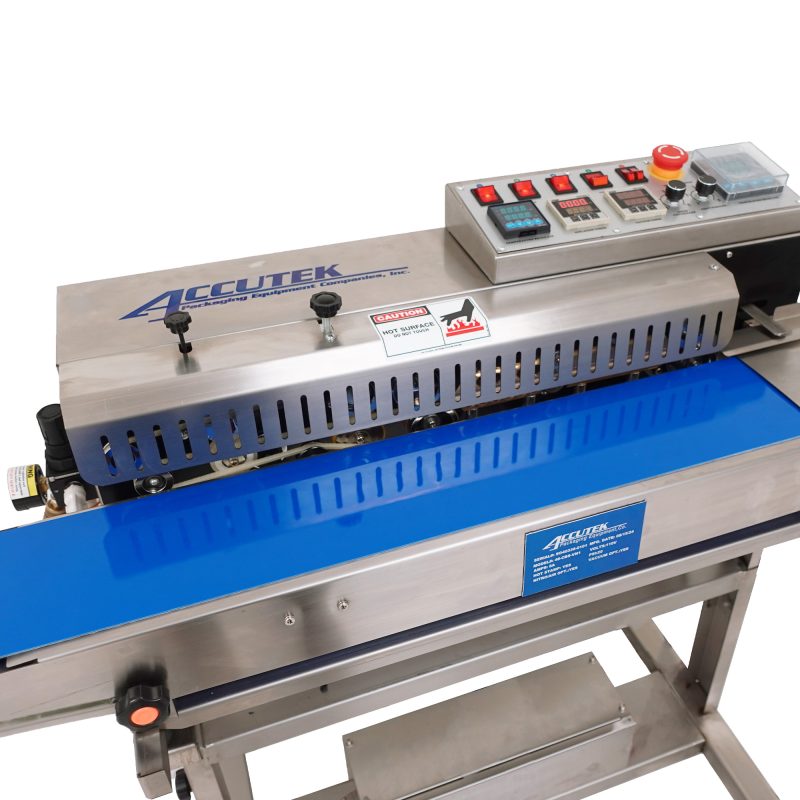

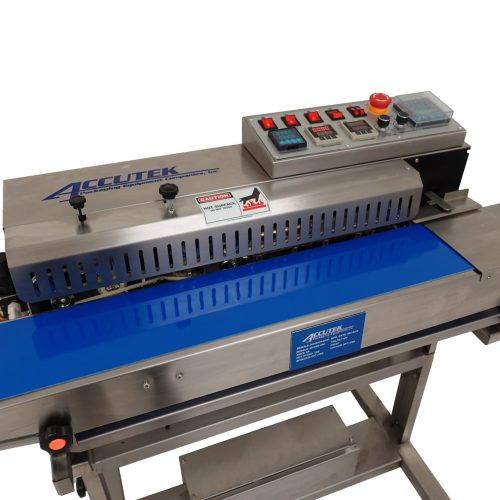

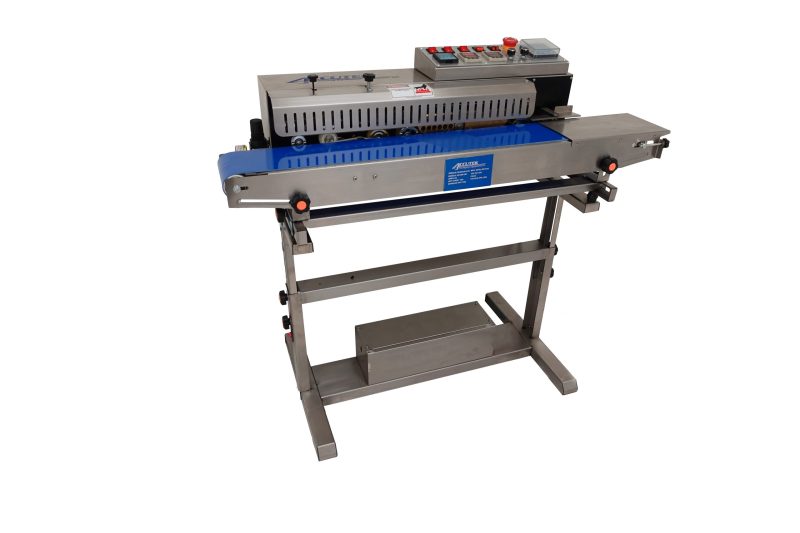

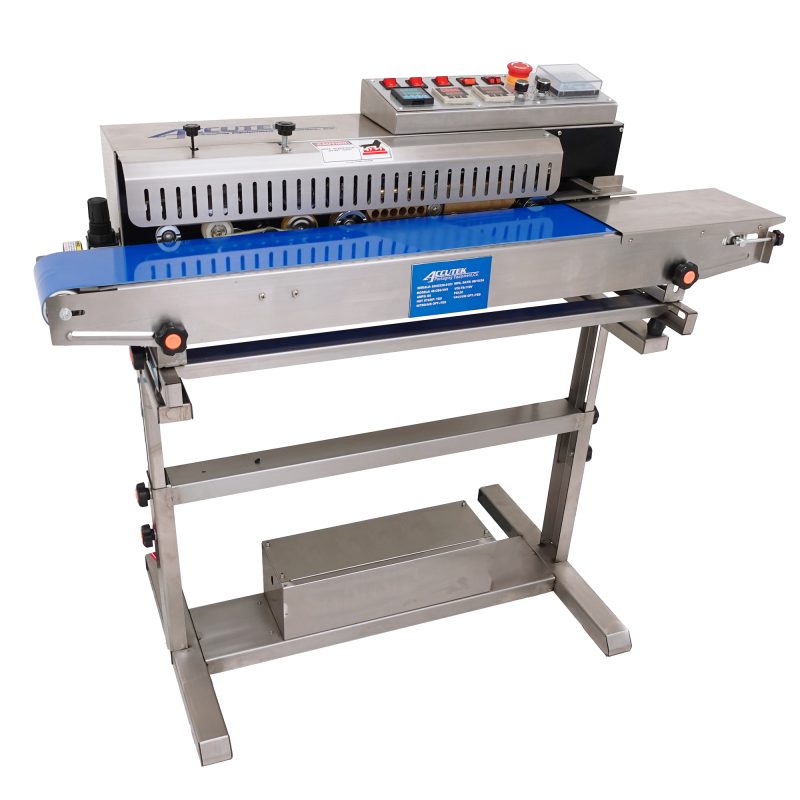

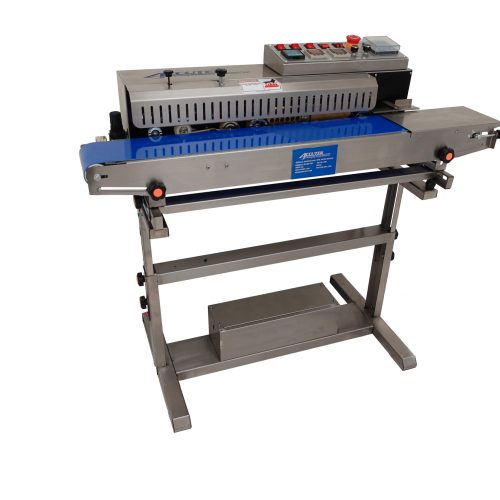

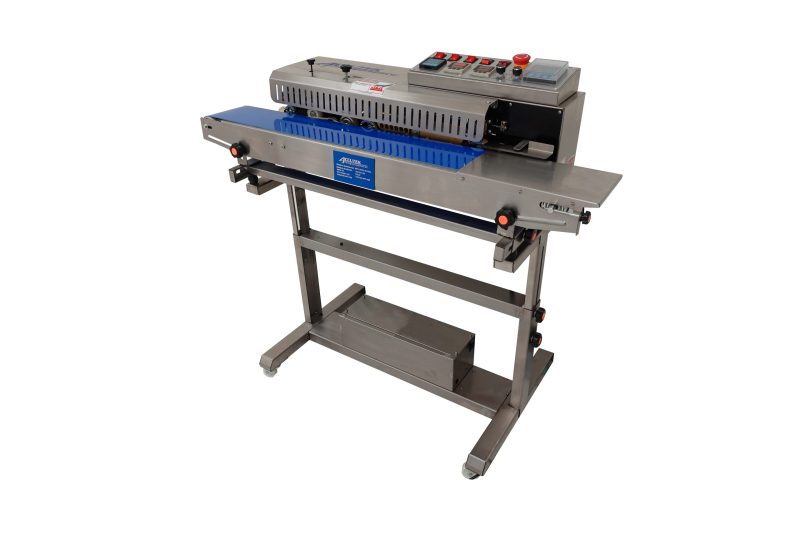

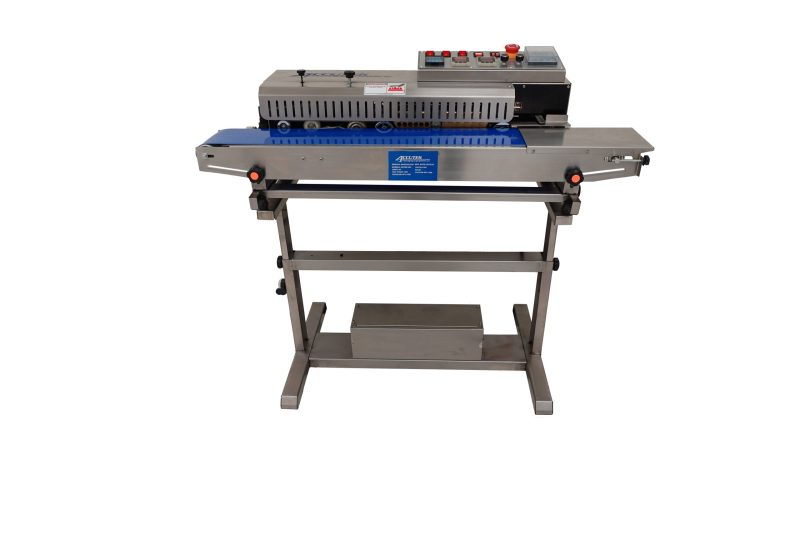

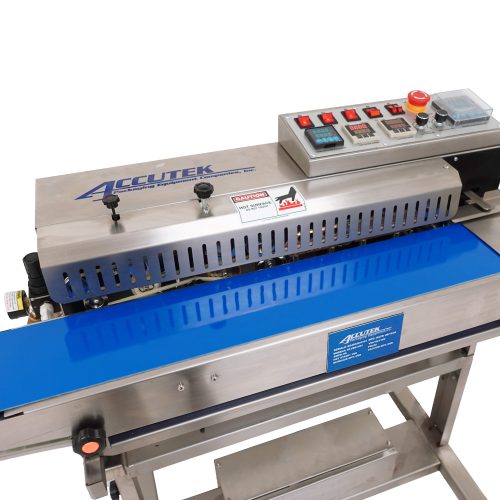

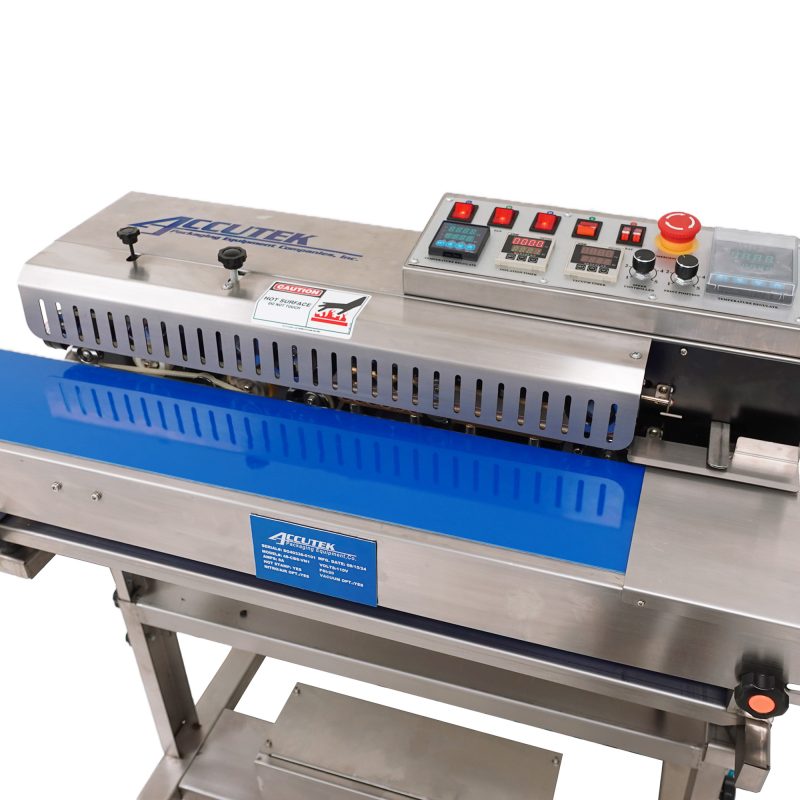

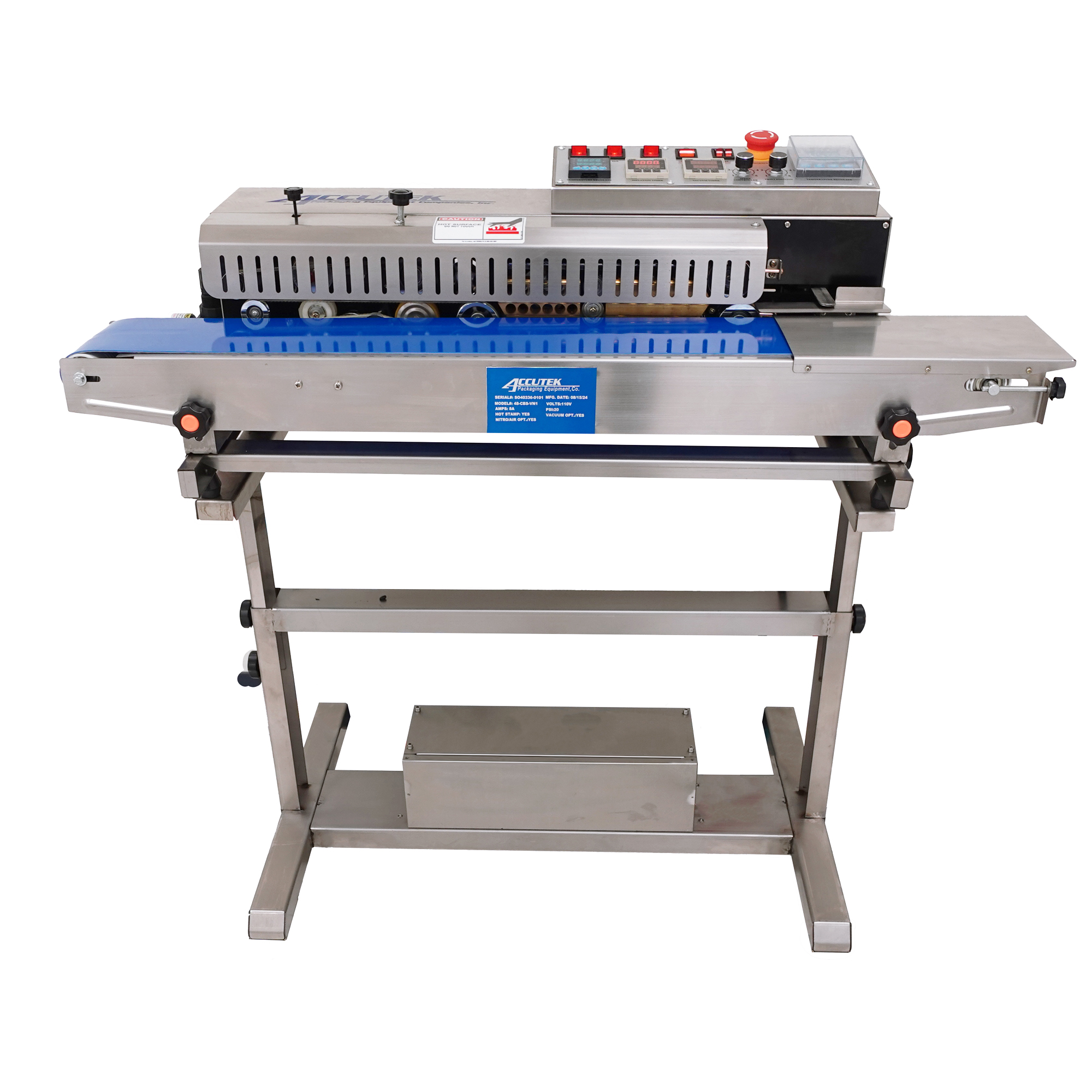

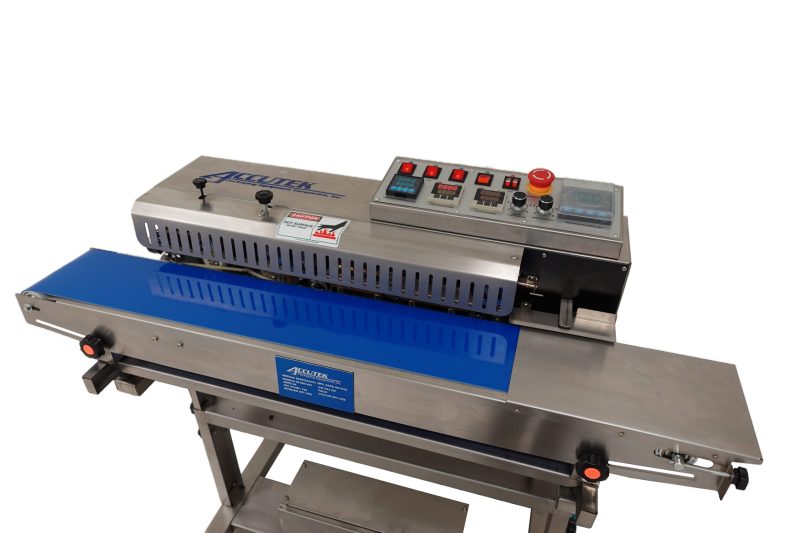

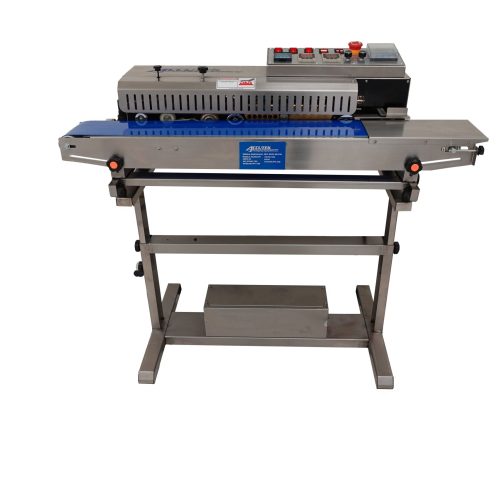

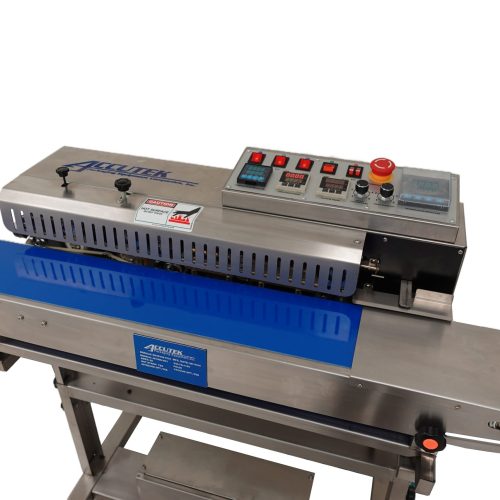

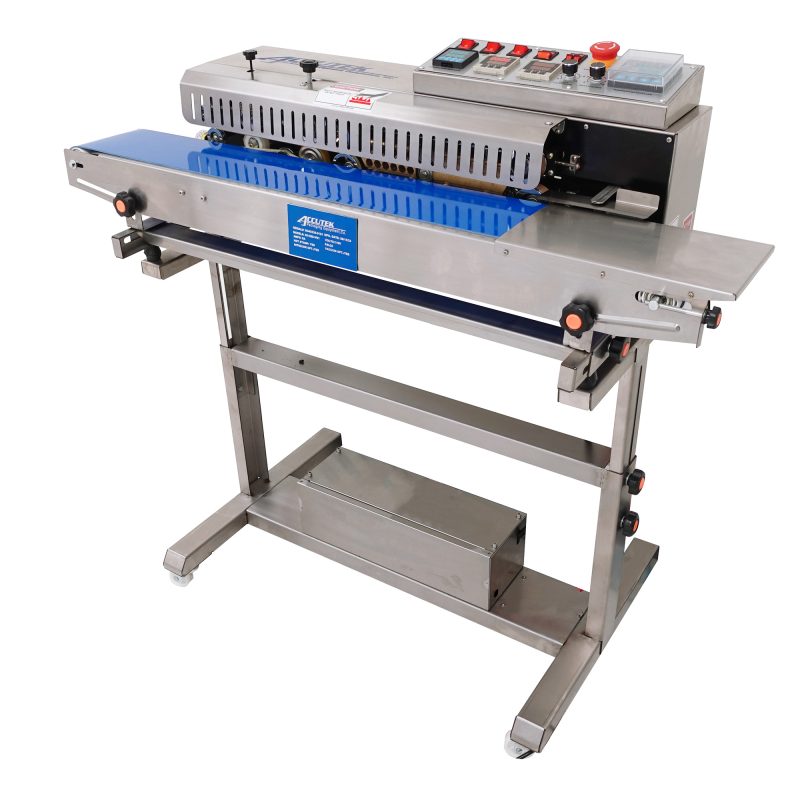

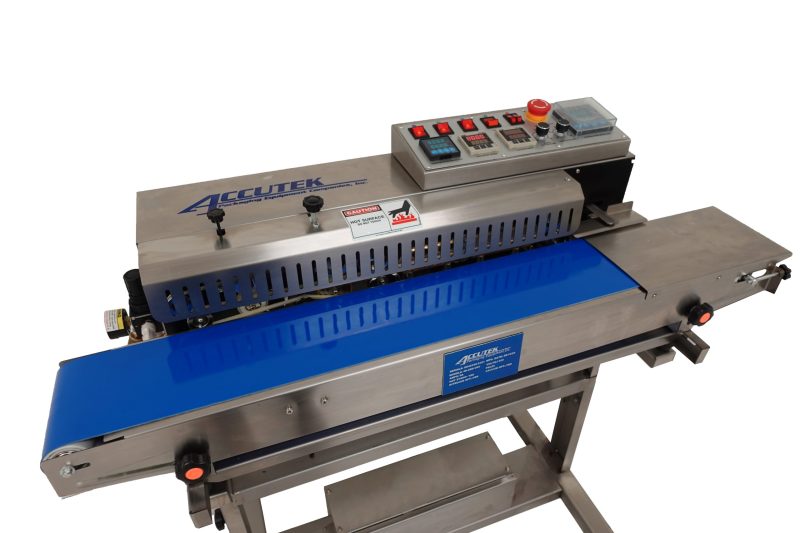

Horizontal Band Sealer

HomeSealers Horizontal Band Sealer

Band sealers use heat to create airtight seals in bags and pouches. They use rotating belts to move the bag through heated elements to firmly seal up the product. After sealing, a cooling mechanism solidifies the seal.

Band heat sealers are fast, consistent, and cost-effective. Using one can help you reduce production times and waste.

These machines can be used in multiple industries, including food, medicine, chemicals, agriculture, etc. If you’re considering using Accutek’s horizontal band sealer for your product(s), talk with us so we can make sure that your products are compatible with this machine.

Contact Accutek today to learn more about this machine.

Recommended Products

  • Bags of various sizes
  • Plastic film bags

What industries can this machine seal products for?

The horizontal band sealer is excellent for the food, medicine, chemicals, daily necessities, and agricultural industries, among others.

What should I do to maintain and keep the machine clean?

Daily maintenance is necessary to prolong the service life, prevent failures, and achieve the best packaging effect. If the machine is used frequently (more than four hours per day), perform maintenance every three months. Maintenance is recommended every six months for less than four hours per day (depending on the location, environment, and product). However, some users can perform simple maintenance work on the product according to their own requirements. The manual contains more information on how to keep this machine in good shape.

What should I do if I have any problems with the machine?

If you experience any problems with your horizontal band sealer, then consult your user manual. It contains a troubleshooting section that details various issues you may encounter while operating your sealer, as well as the corresponding solutions for them. If the problem is outside the scope of what the manual describes, or the suggested solutions aren’t fixing the issue, then consult Accutek’s service department. We’ll be happy to help walk you through troubleshooting the problem.
FRD1000VN (Floor type)
  • Supply Voltage: 1P AC 220V/50-60Hz or 110V/60Hz
  • Motor Power: 50W
  • Heater power: 300W*2
  • Sealing Speed: 0-13m/min (adjustable)
  • Temp Range: 0-300 adjustable
  • Film thickness: ≦0.08 mm
  • Conveyor Loading: ≦3 kg (6.6 lbs.)
  • Dimensions:
    • Length: 36” (91.44 cm)
    • Width: 19.2” (48.8 cm)
    • Height: 39.6” (100.6 cm)
  • Weight: 42kg (92.6 lbs)
    FRD1000N (Horizontal)
  • Supply Voltage: 1P AC 220V/50-60Hz or 110V/60Hz
  • Motor Power: 50W
  • Heater power: 300W*2
  • Sealing Speed: 0-13m/min (adjustable)
  • Temp Range: 0-300 adjustable
  • Film thickness: ≦0.08 mm
  • Conveyor Loading: ≦3 kg (6.6 lbs.)
  • Dimensions:
    • Length: 15.6” (39.6 cm)
    • Width: 13.2 (33.5 cm)
    • Height: 39.6” (100.6 cm)
  • Weight: 24.5 kg (54 lbs)
  • Electronic temperature control
  • Seal plastic bags of multiple materials
  • Can be used with packing lines
  • Solid ink printing
  • No-pattern indentation printing
  • Mesh or stripe indentation printing
  • Date or lot coding
