AccuTorque Digital

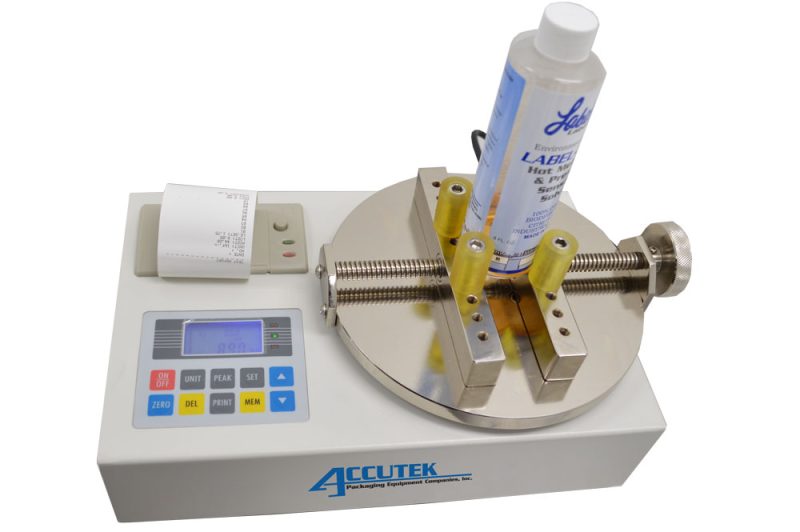

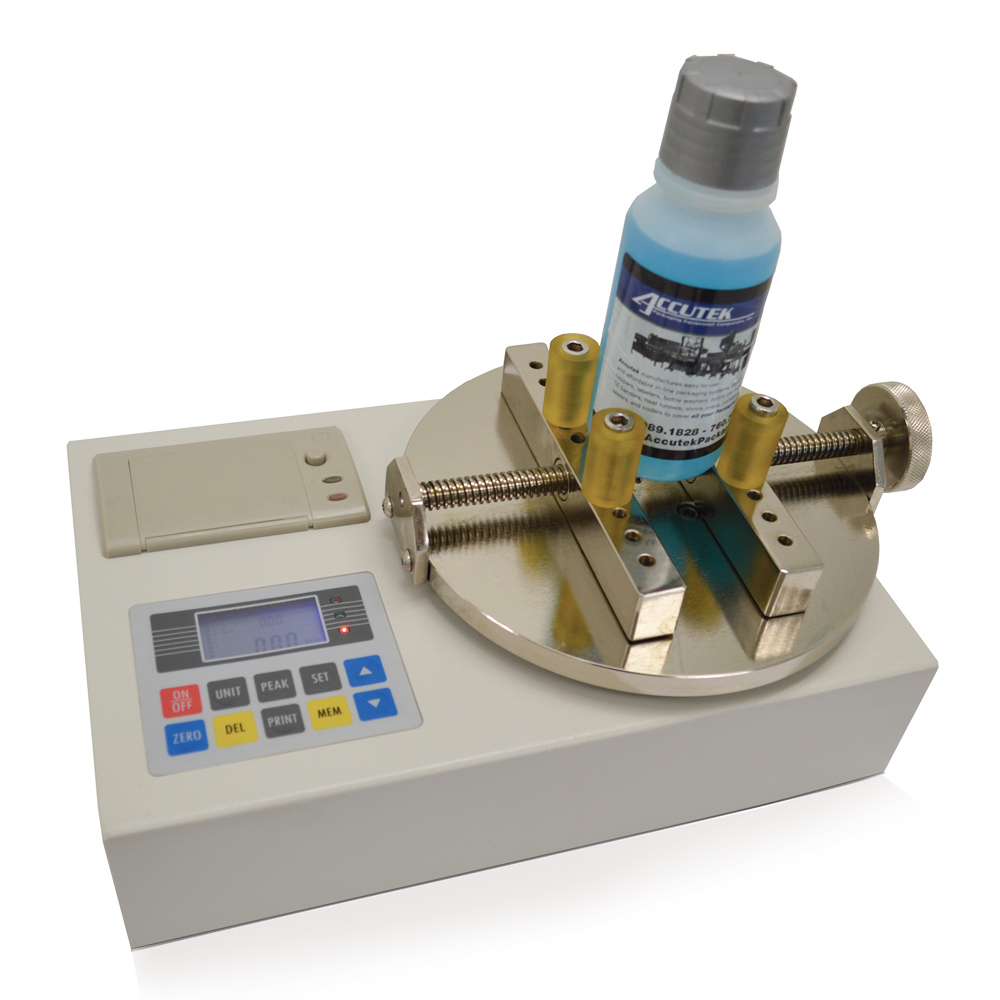

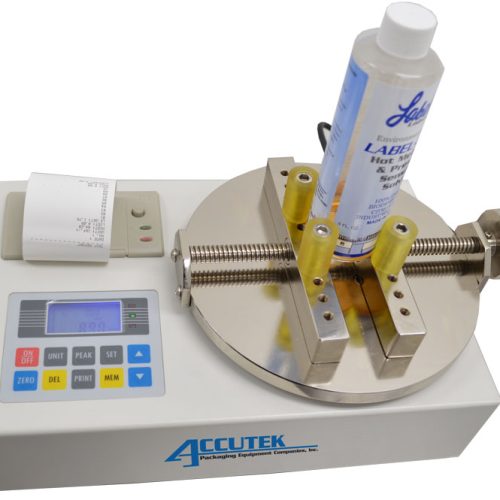

The AccuTorque Tester Digital (ATT-D) is a dual-direction, digital torque tester that measures 0-100 inch pounds (.1 inch-pound increments) in application and removal torque. The accuracy is +/- 2%. The reading remains on screen for approximately 30 seconds for record-keeping. A thermal printer is also available for additional validation purposes.
The digital unit uses a 110 VAC plug or a 9V battery for field or lab use.
Custom brackets are used for bottles with a diameter over 5 ¾”. Custom mounting brackets are available for any container that is over the maximum diameter, is oddly shaped, or for offset closure containers. You will need to provide us with samples so we can make these brackets.
The AccuTorque digital comes standard with a chrome nickel-plated finish that will resist chipping, cracking, flaking, and peeling.
An optional Teflon coating is available too. All exposed metal parts are coated with a Teflon finish to provide a hard, wear-resistant, anti-stick, permanently lubricated surface that will protect the Accu-Tester from most chemicals, ingredients, and solvents.
Contact Accutek today to learn more about this machine.
Recommended Products
- Capped containers
What information does the LCD screen provide?
What should I do if I have issues with this machine?
- Electrical: Rechargeable NI-CD Power Cell
- Torque Range: 0-100 ft-lbs.
- Cap Size: 15 mm – 132 mm
- Communication: 9-pin RS-232C
- Power Adapter: 110VAC 50/60Hz
- Length: 14” (35.56 cm)
- Height: 6.5” (16.51 cm)
- Width: 10” (25.4 cm)
- Weight: Approx. 21 lbs. (9.53 kg)
- Tests both the application and removal torque
- High accuracy and resolution
- High and low limit settings with indicator lights
- Direction of torque indicator
- Backlit display illumination
- Memory for up to 10 test results
- Built-in printer
- Calculation of average memory data
- Three units of measurement and auto conversion
- Peak hold function, with settable timer
- Validation printer
- Custom brackets for large or odd-shaped containers
- Rolls of printer paper (six pack)
- Calibration confirmation & recertification
- Additional grip & pegs
- Specialized tooling
